SUN HYDRAULICS
DDHGXCN
- SUN HYDRAULICS
- Material:DDHGXCN
- Model:DDHG-XCN
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

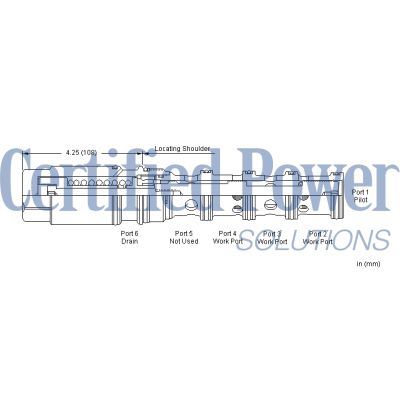

The Sun Hydraulics DDHGXCN (DDHGXCN) is a two-position, 3-way directional cartridge valve featuring six ports, with port 5 being inactive. This model can be configured with up to five different spool configurations, enhancing its versatility in application. The supply port is designated as port 3, and all ports are capable of handling pressures up to 5000 psi (350 bar). The performance of these pilot-to-shift valves varies depending on the spool type selected. Key specifications include a maximum flow capacity of 80 gpm (320 L/min), with a minimum pilot pressure requirement of 300 psi (20 bar) for valve shifting and 350 psi (24 bar) for full shift at rated flow. The maximum operating pressure for the valve reaches up to 5000 psi (350 bar). Designed for robustness and reliability, the hardened spool and sleeve ensure low leakage rates and superior wear characteristics. The valve also incorporates Sun's floating style construction which minimizes internal binding due to excessive installation torque or variations in cavity/cartridge machining. Additional technical features include a maximum valve leakage at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar), pilot volume displacement of .27 in\u00b3 (4.4 cc), and a hex size of 1\u215d inches (41.3 mm). Installation torque is specified between 350 -375 lbf\u00b7ft (474 -508 Nm), and the model weighs approximately 5.9 lbs (2.7 kg). For maintenance, a Viton seal kit is available under part number: 990054006. This model is particularly suitable for applications requiring precise control over hydraulic flow with varying pressure conditions, ensuring operational stability and efficiency across different hydraulic systems.
The Sun Hydraulics DDHGXCN (DDHGXCN) is a two-position, 3-way directional cartridge valve featuring six ports, with port 5 being inactive. This model can be configured with up to five different spool configurations, enhancing its versatility in application. The supply port is designated as port 3, and all ports are capable of handling pressures up to 5000 psi (350 bar). The performance of these pilot-to-shift valves varies depending on the spool type selected. Key specifications include a maximum flow capacity of 80 gpm (320 L/min), with a minimum pilot pressure requirement of 300 psi (20 bar) for valve shifting and 350 psi (24 bar) for full shift at rated flow. The maximum operating pressure for the valve reaches up to 5000 psi (350 bar). Designed for robustness and reliability, the hardened spool and sleeve ensure low leakage rates and superior wear characteristics. The valve also incorporates Sun's floating style construction which minimizes internal binding due to excessive installation torque or variations in cavity/cartridge machining. Additional technical features include a maximum valve leakage at 110 SUS (24 cSt) of 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar), pilot volume displacement of .27 in\u00b3 (4.4 cc), and a hex size of 1\u215d inches (41.3 mm). Installation torque is specified between 350 -375 lbf\u00b7ft (474 -508 Nm), and the model weighs approximately 5.9 lbs (2.7 kg). For maintenance, a Viton seal kit is available under part number: 990054006. This model is particularly suitable for applications requiring precise control over hydraulic flow with varying pressure conditions, ensuring operational stability and efficiency across different hydraulic systems.
Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-54A |
| Series | 4 |
| Capacity | 80 gpm320 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 300 psi20 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 350 psi24 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Pilot Volume Displacement | .27 in³4,4 cc |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 5.9 lb2,7 kg |
| Seal kit - Cartridge | Viton: 990-054-006 |
