MULTI-STIX™ SERIES — PROPORTIONAL PLOW CONTROL

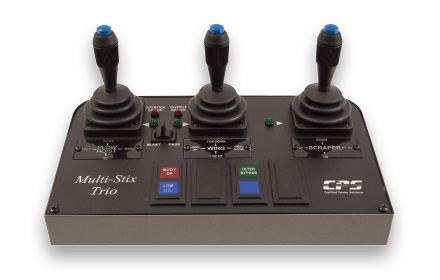

Proportional Plow Control Systems
The Multi-Stix™ series from Certified Power Solutions brings you precision proportional plow control amplified with function and power. Offering multiple joystick options, Multi-Stix helps provide meticulous operations in three configurations with fully proportional capabilities and multi-function control. Multi-Stix configurations additionally provide the ability to individually program the speed of each direction of motion without changing wiring or making hydraulic modifications by utilizing Certified Power Solutions Mako™ software.
REQUEST QUOTE
| FEATURES |
| Multi-Stix 216, 320 and 420 models |
| Fully proportional, 1 or 2 axis joysticks |
| Multi-function control on any joystick |
| Selectable safety triggers |
| Hoist, wing or blade lock and limits available |
| Controls up to 6 devices |
| Control up to 20 proportional channels on multiple joysticks |
| Easy capability upgrade options with Mako electronics platform |
| Configurable for snow and ice patrol, garbage and leaf collection trucks |
| PRODUCT SUMMARY |
| Multiple joysticks for proportional control of hydraulic devices (e.g., hoist, plow, wing) |
| Utilizes Mako Trim™, a Windows® compatible program to set the speed of each direction of motion individually without wiring or hydraulic modifications |
| PRODUCT APPLICATION |
| Multiple vehicle types (patrol trucks for snow/ice, garbage, leaf collection) |
| Control of each hydraulic function on an individual joystick |
| DEVICE AND SIGNAL CAPACITY |

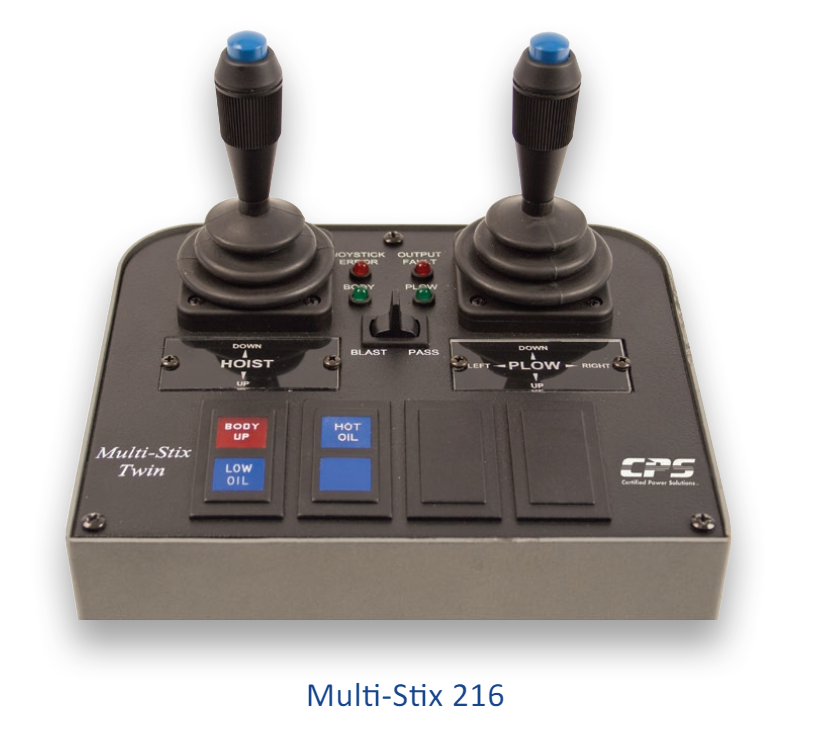

| MS 216 up to 4 devices; 16 independent PWM channels |
| MS 320 up to 6 devices; 20 independent PWM channels |

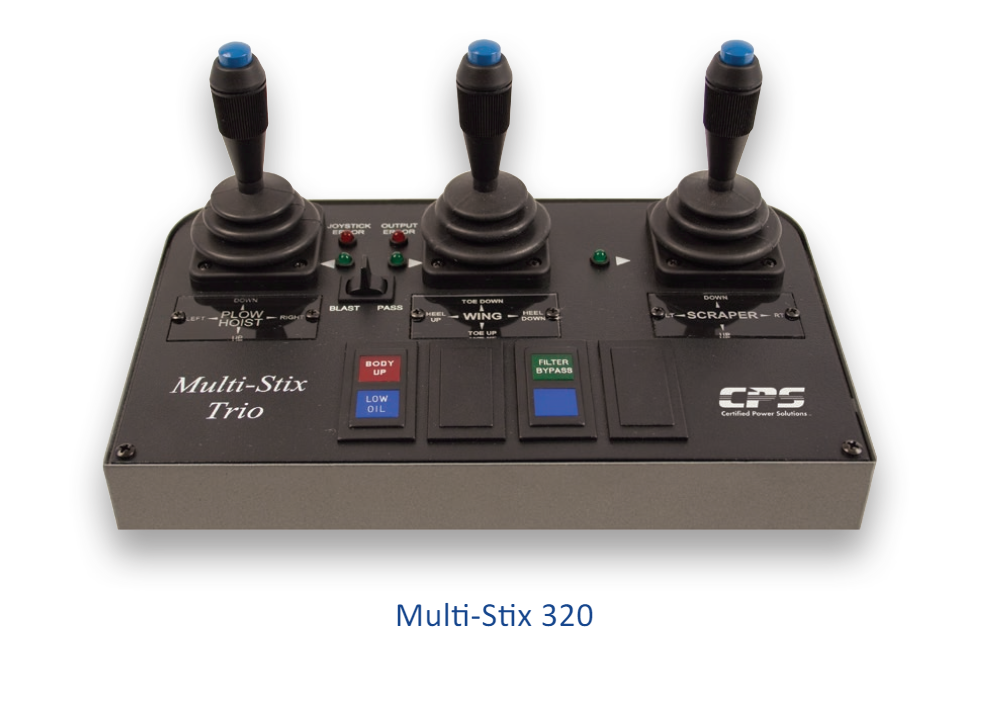

| MS 420 up to 8 devices; 20 independent PWM channels |
| Frequency settable from 40 – 450 Hz |
| JOYSTICK BUTTON |
| IP 68 top switch for safety interlock (hoist) or second mode actuation |
| AXIS AND RANGE OF JOYSTICK MOTION |
| 1 or 2 axes of joystick motion: X and Y |
| 27 degrees of motion available in each axis |
| JOYSTICK SIGNAL |
| True Hall effect (magnetic) joystick with no mechanical contacts |
| JOYSTICK SELF TEST DIAGNOSTICS WITH CAN BUS |
| Mako uses CAN bus for a self test of the joystick during power cycle |
| SafeStik™ automatically disables the axis if an axis fails during use |
| Joystick diagnostics for each axis of motion is visible on LED |
| Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels |
| COMBO-UP (PANIC) BUTTON |
| Momentary button trigger for parking of up to 6 devices |
| FLOAT FUNCTIONS |
| User settable float controls for plow, wing toe, wing heel and blade |
| PLOW CONTROL INTERLOCKED FEATURES |
| Hoist lock, hoist limit, plow, wing and blade lock (requires external sensor, key or switch) |
| ELECTRONIC BACKPACK |
| Mako multiplexed on CAN bus and Certified Power Solutions bus |
| SYSTEM CONTROLLER |
| Mako Trim works on any Windows® 2000 or newer computer |
| Software included |
| Field-configurable buttons and function names |
| SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| WARNING INDICATORS |
| Up to 8 labeled and colored indicators integrated into the joystick housing |
| OPTIONAL EQUIPMENT |
| Uni-Grip™ control of plow float and Moray™ system |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
