MDC™ — PROPORTIONAL PLOW CONTROL
Proportional Plow Control Systems

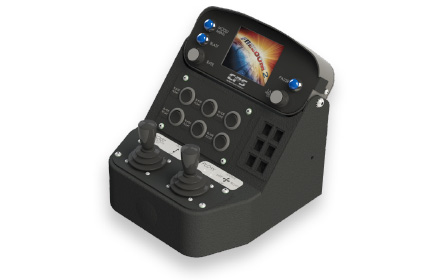

The MDC™ is a compact CAN-bus plow control system designed for ease of installation and quick delivery to the upfitter. The pre-configured system layout offers 1, 2 or 3 joysticks, and either a programmable electronic switch package or simple rocker switches to easily cover most applications. The MDC console is designed to accept the Freedom 2™ electronic spreader control system. When installed together, the integrated design provides a central location to control the hydraulic functions.
REQUEST QUOTE
| KEY FEATURES |
| CAN-based wiring of valve control for ease of installation |
| Up to 6 switches (depending on model) |
| Integrated CAN-bus modules |
| Powder-coated aluminum construction |
| Armrest and pedestal mounting options |
| 6 indicators |
| Standard configurations to reduce lead time |
| FREEDOM 2 ELECTRONIC SPREADER CONTROL SYSTEM FEATURES |
| Pulse-width modulated (PWM) valve signals with current control for auger, spinner and pre-wet (depending on model) |
| Ground-speed oriented |
| Closed-loop speed control (depending on model) |
| Color touchscreen |
| Storm totals |
| Remote pause and blast (depending on model) |
| Reliable hall effect joysticks |
| ADDITIONAL FEATURES |

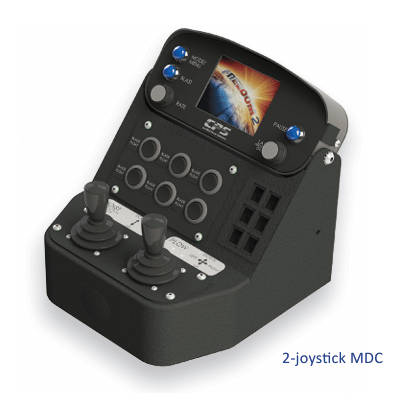

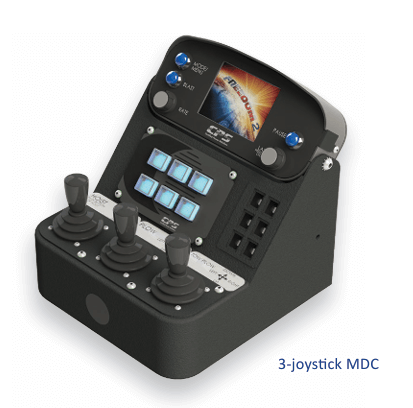

| 2- and 3-stick designs available |
| Switch only design as an option |
| CAN-bus connectivity on joystick versions |
| Compact design for medium duty applications |
| Switches and indicators available for auxiliary functions |
| Up to 14 PWM valve signals |
| Multiple mounting options |
| Designed to integrate Freedom 2 electronic spreader control system |
| Control of up to 7 double-acting functions |
| User configurable plow and wing float (double and single acting) |
| Deadman on hoist |

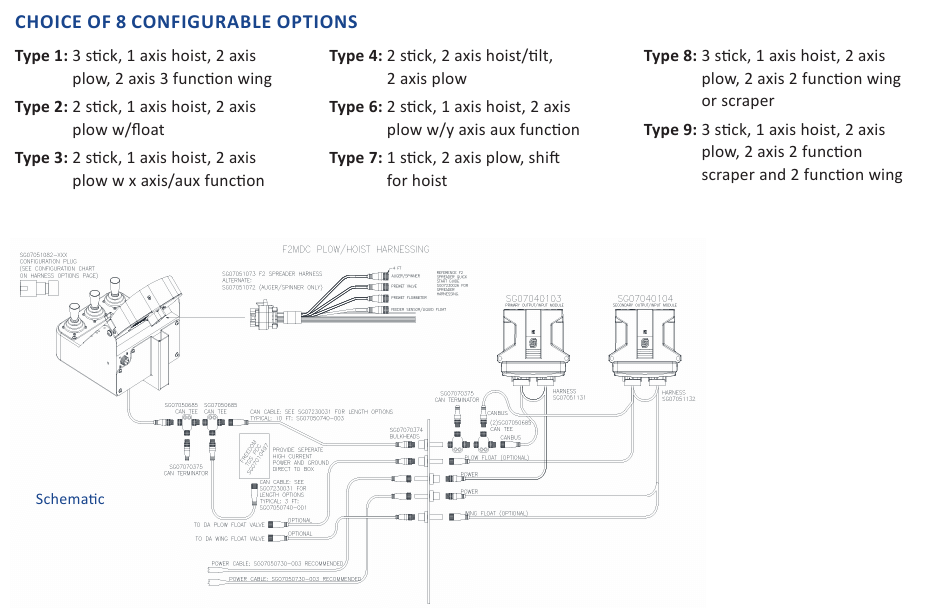

| 8 different control variations to choose from |
| 6 LED indicators with legends |
| Hoist limit (optional) |
