UNI-GRIP™ SERIES AND SPREADSMART RX™
Integrated Plow & Spreader Controls
The Uni-Grip Series provides effective plow controls via performance, power and precision. Available with fully proportional capabilities and multi-function control in three different configurations, the Uni-Grip™ series of single joysticks from Certified Power Solutions offer precision operations for superior winter maintenance. The Uni-Grip series utilizes our sophisticated Mako™ software, which allows operators to individually program the speed of each direction of motion without changing wiring or making hydraulic modifications. When it comes to electronic spreader controls, the SpreadSmart RX provides your winter maintenance vehicles with accuracy, power and performance. Offering sophisticated technology such as temperature-controlled spreading, integrated load and rate management and Wi-Fi data transfer compatibility, the SpreadSmart Rx™ provides industry-leading precision and easy operation. What’s more, the SpreadSmart Rx is designed with AVL ready hardware providing the capacity to advance your system technology as needed.
REQUEST QUOTE
| UNI-GRIP FEATURES |
| Uni-Grip 412, 620 and 820 models |
| Fully proportional single joystick |
| 2- or 3-axis options |
| Multi-function control |
| Standard safety grip trigger |
| Controls up to 7 hydraulic devices |
| Control up to 20 proportional channels on one stick |
| Configurable FOR patrol, garbage AND leaf collection vehicles |
| Easy capability upgrade options with Mako electronics platform |
| UNI-GRIP PRODUCT SUMMARY |
| Single joystick for proportional control of hydraulic devices (e.g., hoist, plow, wing, blade) |
| Utilizes Mako Trim™, a Windows® compatible program to set the speed of each direction of motion individually without wiring or hydraulic modifications |
| UNI-GRIP PRODUCT APPLICATION |
| Multiple vehicle types (patrol trucks for snow/ice, sanitation, leaf collection, etc.) |
| Control of each hydraulic function independently |
| UNI-GRIP DEVICE AND SIGNAL CAPACITY |

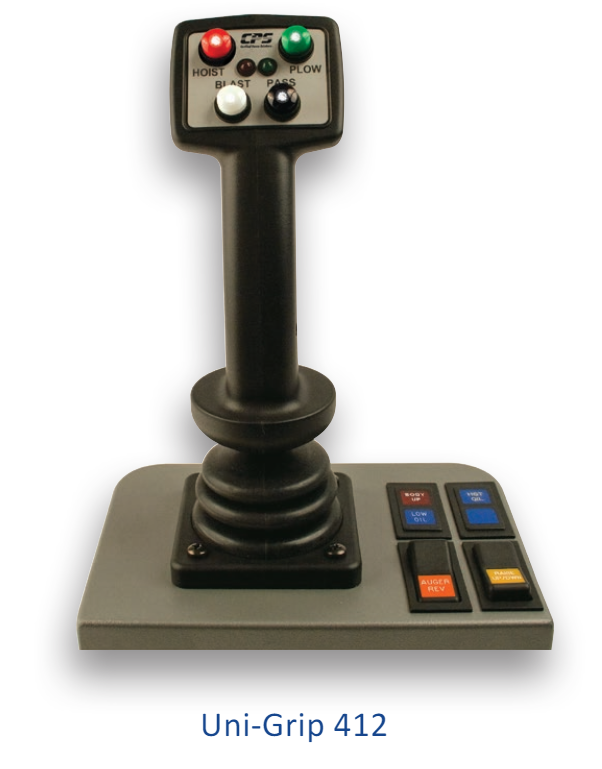

| UG 412 - up to 3 devices; 12 independent PWM channels |

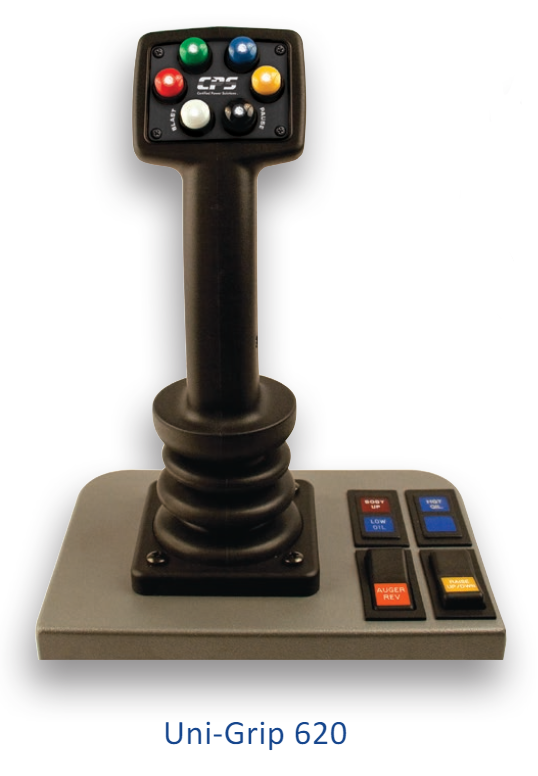

| UG 620 - up to 5 devices; 20 independent PWM channels |

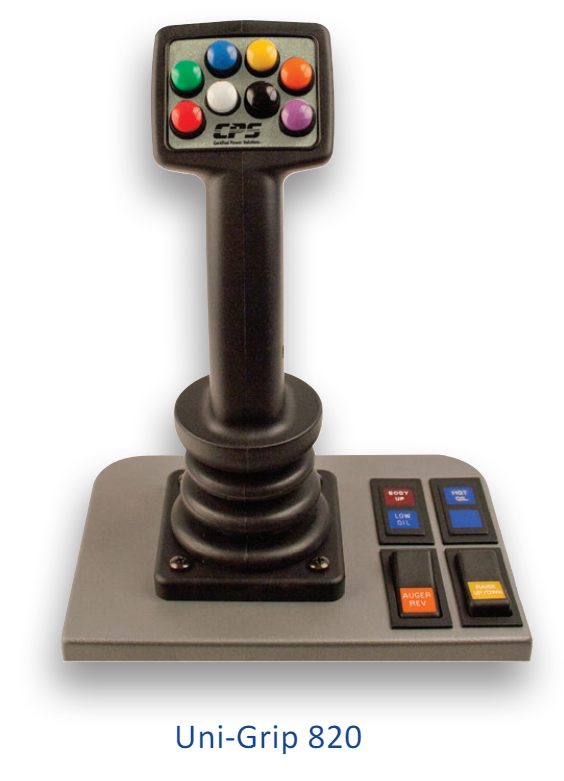

| UG 820 - up to 7 devices; 20 independent PWM channels |
| Frequency range from 40 – 450 Hz |
| UNI-GRIP JOYSTICK BUTTONS |
| UG 412 - 2 programmable buttons |
| UG 620 - 4 programmable buttons |
| UG 820 - 6 programmable buttons |
| UNI-GRIP AXIS AND RANGE OF JOYSTICK MOTION |
| UG 412 - 2 axes of joystick motion: X and Y |
| UG 620 - 3 axes of joystick motion: X, Y and Z |
| UG 820 - 3 axes of joystick motion: X, Y and Z |
| 27 degrees of motion available in each axis |
| UNI-GRIP JOYSTICK SIGNAL |
| True Hall effect (Magnetic) joystick with no mechanical contacts |
| UNI-GRIP JOYSTICK SELF TEST DIAGNOSTICS WITH CAN BUS |
| Mako uses CAN bus for a self test of the joystick during each power cycle |
| SafeStik™ automatically disables the axis if an axis fails during use |
| Joystick diagnostics visible on LED, LCD or at valve body |
| Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels |
| UNI-GRIP COMBO UP (PANIC) FUNCTION |
| Momentary button trigger for parking of up to 6 devices |
| UNI-GRIP FLOAT FUNCTIONS |
| User settable float controls for plow, wing toe, wing heel and blade |
| UNI-GRIP PLOW CONTROL INTERLOCKED FEATURES |
| Hoist lock, hoist limit, plow, wing and blade lock (requires external sensor, key or switch) |
| UNI-GRIP ELECTRONIC BACKPACK |
| Mako multiplexed on CAN bus and Certified Power Solutions bus |
| UNI-GRIP SYSTEM CONTROLLER |
| Mako Trim works on any Windows® 2000 (or newer) computer |
| Field configurable buttons and function names |
| UNI-GRIP DISPLAY TYPE |
| UG 412 - LED indication mounted in joystick head |
| UG 620 - graphic LCD (white/blue) or optional color TFT |
| UG 820 - graphic LCD (white/blue) or optional color TFT |
| UNI-GRIP SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| UNI-GRIP WARNING INDICATORS |
| Up to 8 labeled and colored indicators integrated into the joystick housing |
| UNI-GRIP OPTIONAL EQUIPMENT |
| Uni-Grip control of plow float and Moray™ system |
| UNI-GRIP OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| UNI-GRIP POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
| SPREADSMART RX FEATURES |
| The most versatile spreader control in the industry |
| 4 channels, closed loop, ground-speed oriented, granular, pre-wet, anti-ice control |
| Optional 8 channels, closed loop, ground-speed oriented, granular, pre-wet, anti-ice control for tow plow applications |
| Multiplex/CAN bus communication |
| Temperature-triggered spreading control |
| Proportional closed-loop gate control |
| On-board diagnostics tools |
| AVL ready |
| SPREADSMART RX PRODUCT SUMMARY |
| 4 channel, ground speed oriented, open/closed-loop controller with data logging and optional Wi-Fi data transfer |
| Prescription spreading using live road temperature data and/or by programmed rates |
| SPREADSMART RX PRODUCT APPLICATION |
| Auger/conveyor, spinner, pre-wet and anti-icing (3 booms x 2 tiers) |
| SPREADSMART RX SPREADING PRECISION |
| Industry-leading spreading precision in closed-loop and open-loop operation |
| SPREADSMART RX SINGLE OR MULITPLE LANE WIDTH SETTINGS |
| Area spreading in lbs/gal per lane mile (auto adjusts rate for > 1 lane spreading) |
| Linear spreading in lbs/gal per mile (operator controls spinner) |
| SPREADSMART RX SPREADING RATE DEFINITIONS |
| Customized application rates for granular, pre-wet and anti-icing |
| 10 types for granular, 10 types for pre-wet, 10 types for anti-ice |
| SPREADSMART RX TEMPERATURE-LINKED SPREADING PRESCRIPTIONS |
| Temp Response™ integrates road temperature sensor, controlling granular and liquid application automatically |
| SPREADSMART RX LOAD AND RATE CALCULATOR AND MATERIAL REMAINING |
| Calculates granular and liquid requirements for each route (miles) and automatically sets system rates per that calculation |
| Auto mode then includes indication for miles, tons, gallons and % remaining |
| SPREADSMART RX PROPORTIONAL GATE CONTROL |
| Control of optional closed-loop hydraulic gate height and conveyor speed |
| SPREADSMART RX ENGLISH AND METRIC UNITS STANDARD |
| System operates in English or metric units |
| SPREADSMART RX DATA LOGGING BY MATERIAL NAME FOR BILLING |
| Select specific application rate definitions and related data logging for specific purpose (i.e., state vs. county vs. city roads) |
| SPREADSMART RX STORM AND SEASON TOTALS |
| System logs application amounts by rate definition for the storm and the season (storm total is operator resettable) |
| SPREADSMART RX AVL READY |
| Compatible with many brands of radio and cell phone AVL systems |
| SPREADSMART RX SYSTEM SET-UP WIZARD |
| On-screen, step-by-step programming and troubleshooting |
| SPREADSMART RX ON-SCREEN DIAGNOSTICS AND HELP MENU |
| System diagnostics available on screen for settings, software, memory, GPS, distance meter |
| Easy-to-follow instructions for use of all parameters shown in “help menu” |
| SPREADSMART RX BLAST AND PASS (PAUSE) |
| Blast is programmable (on/off, timed, momentary) |
| Pass (pause spreading temporarily) |
| Remote blast and remote pass accessible |
| SPREADSMART RX SIGNAL COMMUNICATIONS |
| Multiple frequency settings for valve compatibility |
| Multiplex/CAN bus communication |
| SPREADSMART RX POWER SAFETY |
| Power Safe™ signals prevent random grounds powering any hydraulics system attached (auger, spinner, conveyor, etc.) |
| Channel Safe™ detects and protects against open or short circuits on hydraulic drive channels |
| Minimum: 11 Volts DC; Maximum 15 Volts DC |
| SPREADSMART RX SYSTEM DISPLAY OPTIONS |

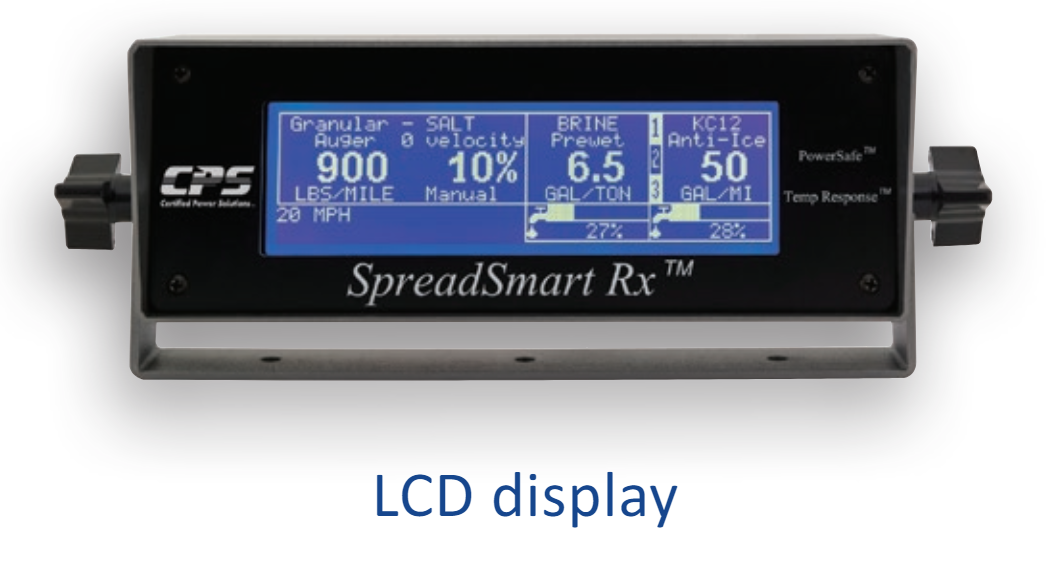

| White/blue LCD: 8 lines, 40 characters/line |
| 7” color TFT: 16 lines, 40 characters/line |

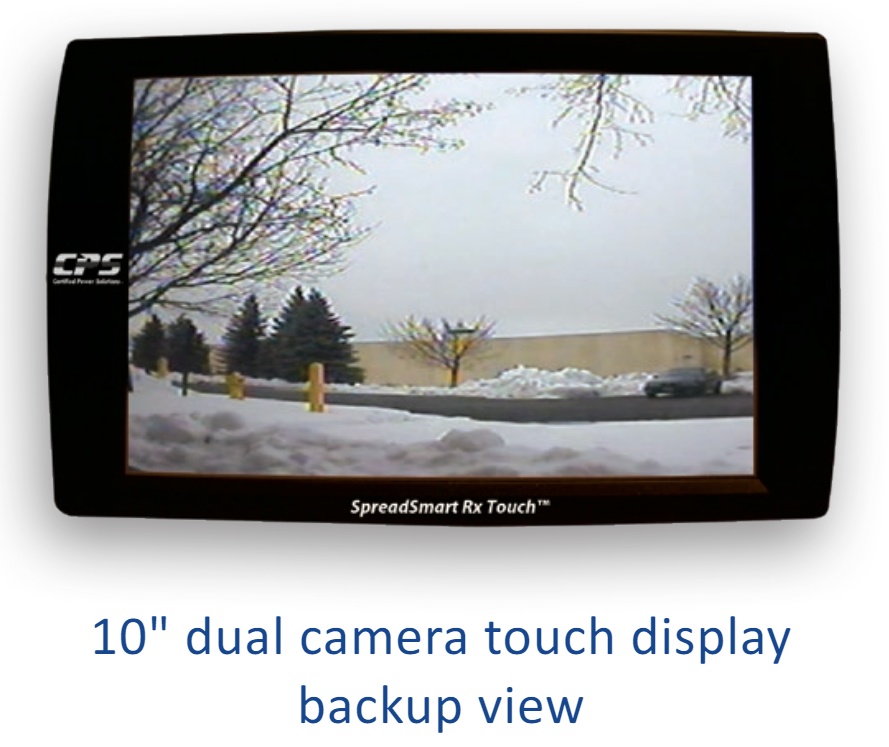

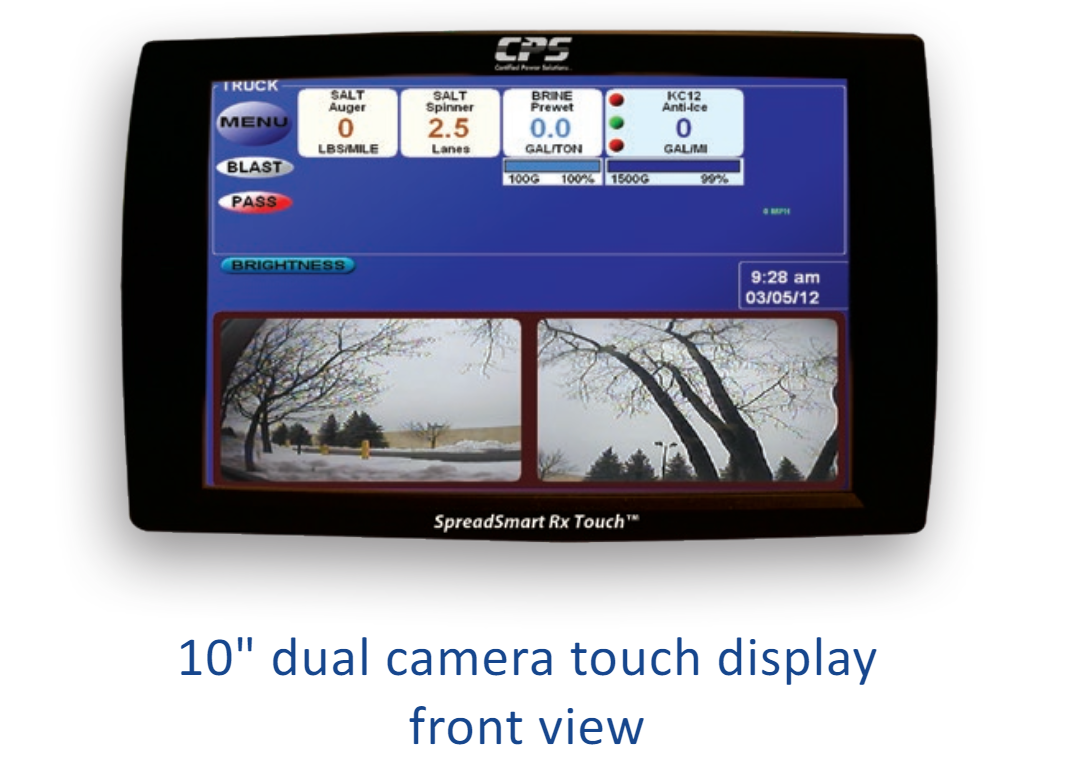

| Optional 7” TFT touch-screen control |
| SPREADSMART RX SYSTEM MOUNTING |
| Seat or pedestal mount |
| Standalone or dash mount for display |
| SPREADSMART RX WARNING INDICATORS |
| Visible (on display) and audible (buzzer) |
| SPREADSMART RX OPTIONAL EQUIPMENT |
| GPS antenna |
| Road and air temperature sensor |
| Drive by Download™ system |
| Gate height sensor, gate height postion, hopper level |
