BLACK TIP™ SERIES — PROPORTIONAL PLOW CONTROL
Proportional Plow Control Systems

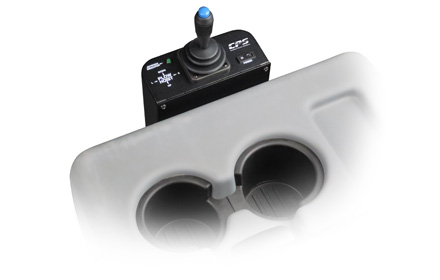

The Black Tip™ series from Certified Power Solutions offers fully proportional capabilities and multi-function control. Delivering effective operations with multiple joystick options, the Black Tip series comes in 1 or 2 joystick configurations that provide powerful performance and dependable accuracy for up to 4 devices. Using Certified Power Solutions Mako™ software, the Black Tip series additionally allows for programming the speed of each direction of motion individually without changing wiring or implementing hydraulic modifications.
REQUEST QUOTE
| DEVICE CAPACITY |
| BT 108 - up to 2 independent devices |
| BT 210 - up to 4 independent devices |
| Programmable safety features for interlock operation |
| PROPORTIONAL SIGNAL CAPACITY |
| BT 108 - 8 independent PWM channels |
| BT 210 - 10 independent PWM channels |
| Frequency range from 40-450 Hz |
| AXIS AND RANGE OF JOYSTICK MOTION |
| 1 or 2 axes of joystick motion: X and Y |
| 27 degrees of motion available in each axis |
| JOYSTICK SIGNAL |
| True Hall effect (magnetic) joystick with no mechanical contacts |
| JOYSTICK SELF TEST |
| SafeStik™ automatically disables the axis if an axis fails during use |
| Joystick diagnostics for each axis of motion is visible on LED |
| Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels |
| PLOW CONTROL INTERLOCKED FEATURES |
| Hoist lock, hoist limit, plow, wing and blade lock (requires external sensor, key or switch) |
| MODE DISPLAY TYPE |
| LED for hoist and plow diagnostics |
| SPREADER COMBINATION OPTIONS |
| Compatible with all Certified Power Solutions spreaders (EZ Spread, Dual Spread™, SpreadSmart Rx™) |
| ACCESSORY SWITCHES |
| Up to 5 Sprague® switches for accessory control (on/off or momentary function) |
| WARNING INDICATORS |
| Up to 2 labeled and colored indicators integrated |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
