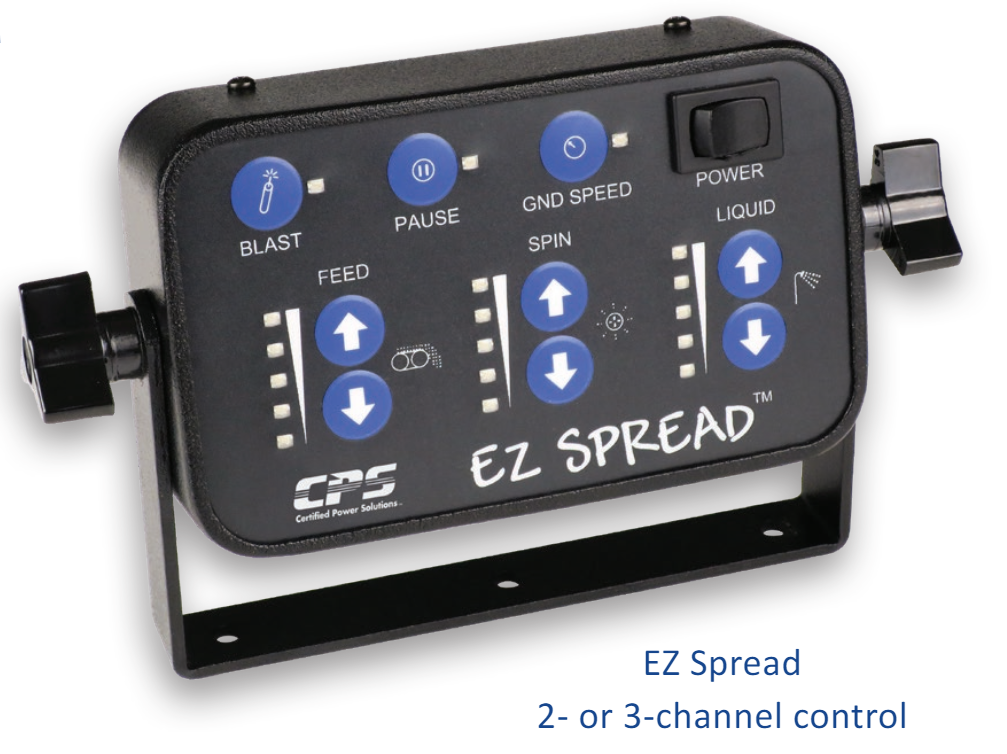

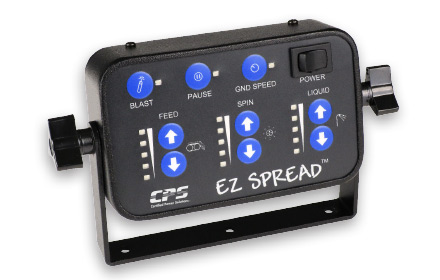

EZ SPREAD™ — ELECTRONIC SPREADER CONTROL
Electronic Spreader Control Systems
The EZ Spread™ features reliable controls for basic spreading applications. Designed for granular and pre-wet applications, the EZ Spread electronic spreader control system from Certified Power Solutions combines core functionality with user-friendly operation.
REQUEST QUOTE
| PRODUCT SUMMARY |
| Ground speed oriented or manual spreader control |
| Includes 3 channels for 2- or 3-channel operation |
| Open-loop control for auger, spinner and auxiliary (pre-wet, X-conveyor) channels |
| Adjustable settings from 0–10 |
| Backlit control panel |
| Programmable trim settings |
| PROPORTIONAL CHANNELS |
| Independent control of 3 proportional channels |
| Usually configured for auger/conveyor, spinner and either cross auger or pre-wet |
| GROUND SPEED OPTIONS |
| Ground speed triggered (GST): starts with truck motion, off when truck stops |
| Ground speed oriented (GSO): on with truck motion, automatically adjusts output to compensate for truck speed, off when truck stops |
| Manual: no ground speed interaction |
| HYDRAULIC TRIMMING |
| Configuration mode for hydraulic trimming without manual trim pots |
| BLAST AND PAUSE |
| Programmable blast included (on/off, timed) |
| Use pause switch to pause spreading |
| System powers up with pause active to prevent indoor spreading |
| OUTPUT SIGNAL |
| Multiple frequency settings for ease of valve compatibility |
| POWER SAFETY |
| Power Safe™ signal prevents random grounds powering any hydraulics system attached (auger, spinner, conveyor, etc.) |
| Channel Safe™ detects and protects against open or short circuits on hydraulic drive channels |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
