DUALSPREAD™ — ELECTRONIC SPREADER CONTROL
Electronic Spreader Control Systems

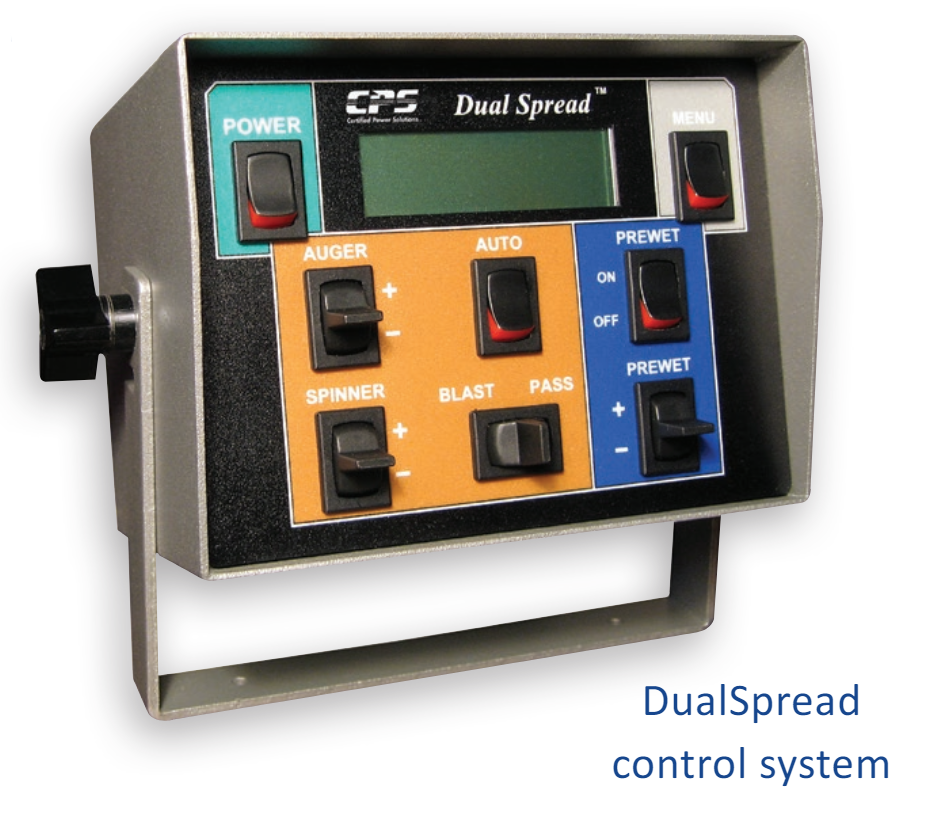

The Dual Spread™ control system provides simple, accurate open- or closed-loop controls for spreading applications including granular and pre-wet. The Dual Spread offers 6 programmable rates for augers, spinners and liquid applications.
REQUEST QUOTE
| PRODUCT APPLICATION |
| Granular and liquid spreading for snow and ice applications |
| 3 OPEN- OR CLOSED-LOOP SPREADING CHANNELS |
| Auger, spinner and pre-wet |
| COMPENSATION FOR CHANGES IN LANE WIDTH SETTINGS |
| Area spreading in lbs/gal per lane mile |
| Distance spreading in lbs/gal per mile |
| MATERIAL DESIGNATION |
| Up to 6 types of granular and 6 types of liquid with customized application rates for each |
| DATA LOGGING BY MATERIAL NAME |
| Select specific application rates, definitions and related data logging for specific purposes (i.e., state vs. county vs. city roads) |
| STORM AND SEASON TOTALS |
| System logs application amounts by rate definition for the storm and the season (storm total is operator resettable) |
| AVL READY |
| Compatible with many brands of radio and cell phone AVL systems |
| BLAST AND PASS (PAUSE) |
| Blast is programmable (on/off, timed, momentary) |
| Remote blast and pass accessible |
| OUTPUT SIGNAL |
| Multiple frequency settings for ease-of-valve compatibility |
| POWER SAFETY |
| Power Safe™ signals prevents random grounds powering any hydraulics system attached (auger, spinner, conveyor, etc.) |
| Channel Safe™ detects and protects against open or short circuits on hydraulic drive channels |
| DISPLAY TYPE |
| 4 lines x 20 characters on the white/blue graphic LCD |
| SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| Standalone |
| WARNING INDICATORS |
| Integrated visible (LCD) and audible (buzzer) for spreading alarms |
| OPTIONAL EQUIPMENT |
| Data Shark™ with Drive by Download™ for data logging and wireless download |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Fuses rated at 10 Amps |
