XDS™ — INTEGRATED PLOW AND SPREADER CONTROL
Integrated Plow & Spreader Controls

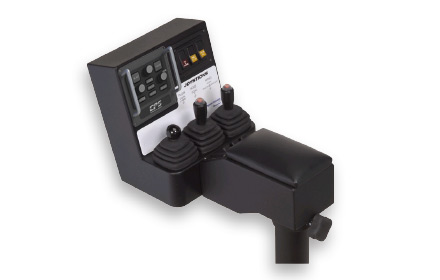

The XDS™ is a full-featured advanced spreader control system using CAN-bus technology. System capabilities include standard spreader functions and dual spreader (tow plow), material positioning spinner control, and dynamic gate control used by advanced spreader designs. Integrated systems with a multi-function joystick or up to 4 individual joysticks are also available.
REQUEST QUOTE
| FEATURES |
| Dynamic joystick calibration |
| Enhanced diagnostics |
| Anti-ice/Pre-wet equipment sharing |
| Direct to modem AVL capability |
| Live serial data capability allowing connection to third-party AVL hardware |
| Incorporates joystick, spreader and liquid functions |
| On-board diagnostics |
| Operator friendly backlit control panel |
| Dual spreader |
| AVL output |
| Variable gate |
| Blast by distance |
| 30 configurable application rates |
| Area based spreading |
| Remaining material display |
| Trimmable digital I/O |
| Distance measurement |
| Directional spinner control |
| PER OUTPUT MODULE |
| 14 high-side driver outputs (pulse-width modulated capable) |
| 1 analog input (4–20mA, 100 Ohm) |
| 4 digital switch inputs (PNP — switch to positive) |
| 13 digital switch inputs (NPN — switch to ground) |
| 4 feedback sensor inputs |

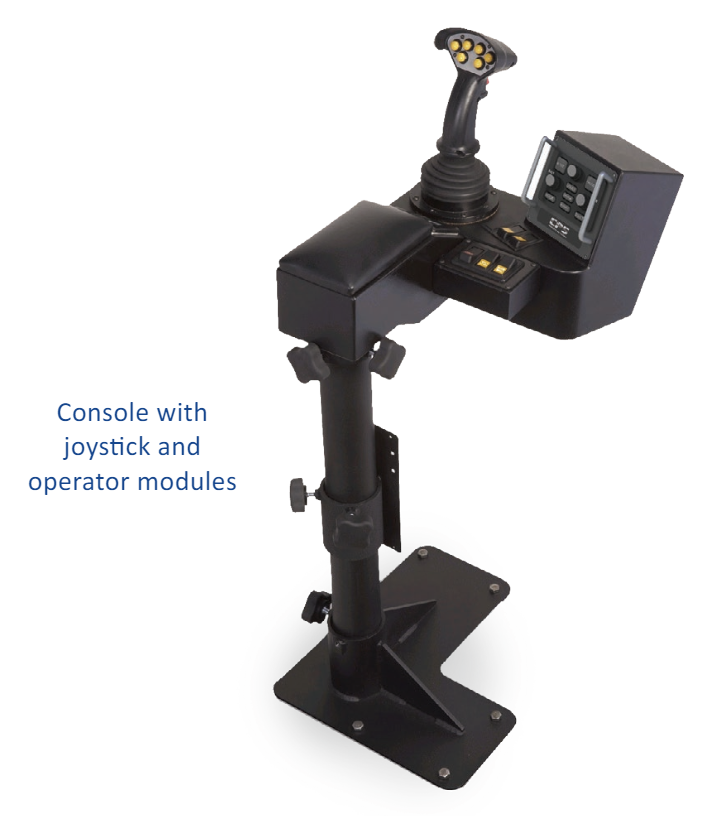

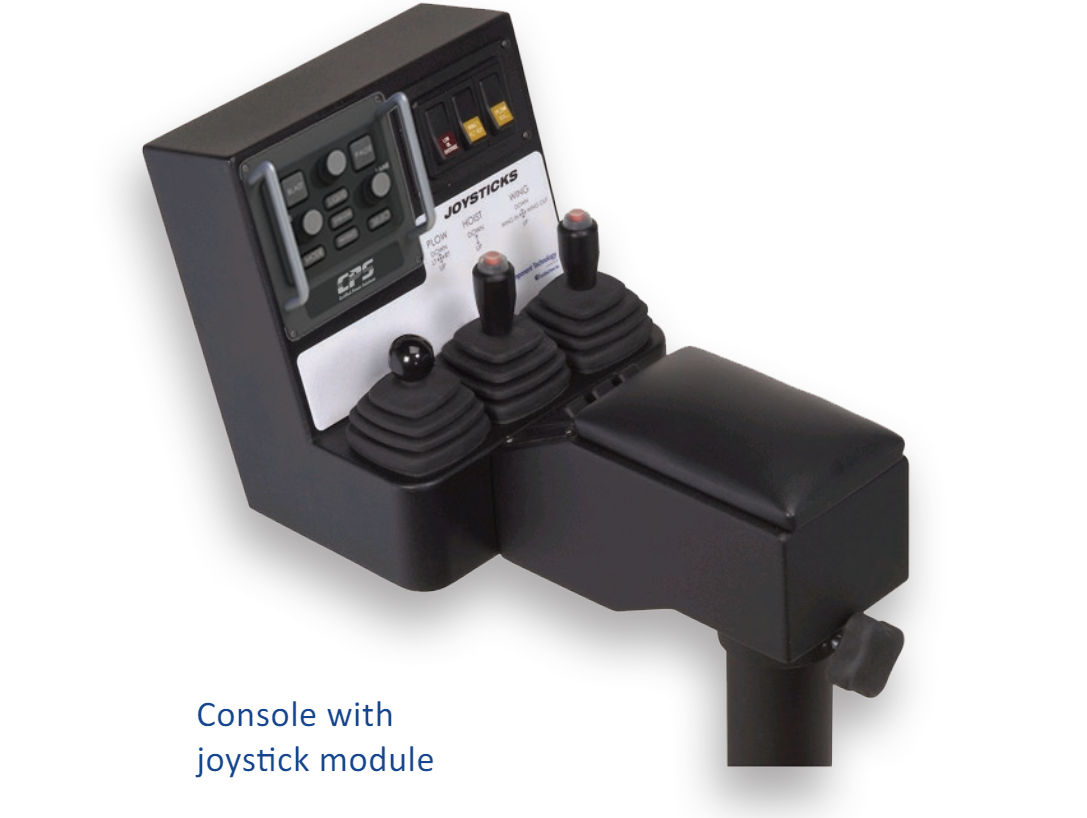

| JOYSTICK |
| 14 digital inputs (joystick module) |
| 5 analog inputs |
| OPERATOR PANEL |
| Speed sensor input |
| 8 digital switch inputs (PNP — switch to Positive) |
| 13 digital outputs |
| Road/Air temperature input |
| 2 digital outputs |
| DISPLAY FEATURES |

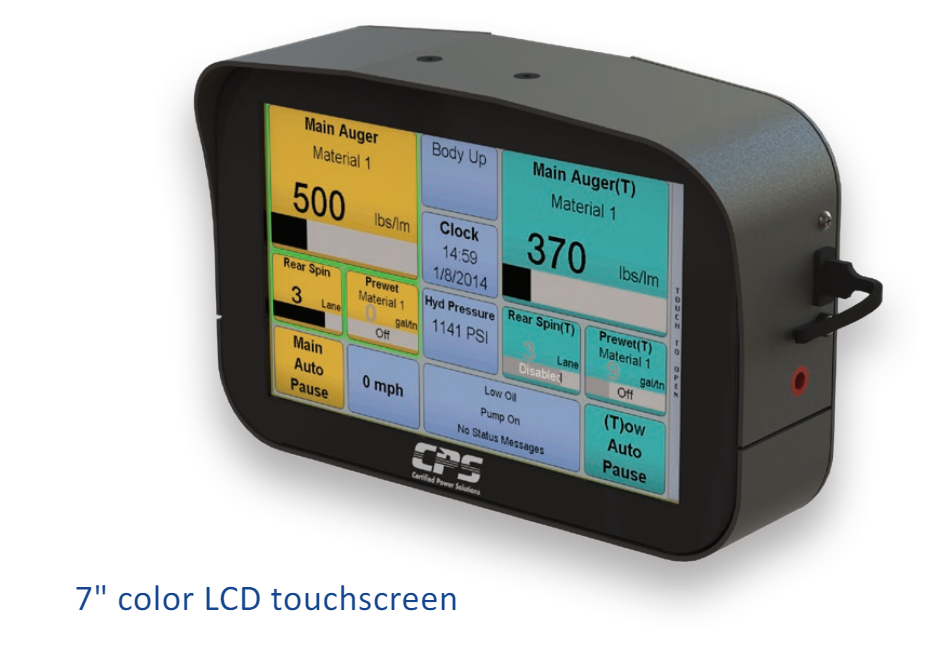

| 7" color LCD touchscreen |
| USB firmware update |
| 4 digital outputs |
| Customizable UI |
| CAN-bus cables |
| Configurable I/O |
