HAMMERHEAD™ — VEHICLE ACCESSORY CONTROL
Electronic Controls & Accessories

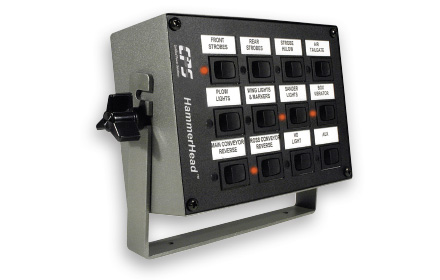

The HammerHead™ 12-switch accessory control from Certified Power Solutions provides a comprehensive control management system, compatibility with Windows® software and field configurable convenience.
REQUEST QUOTE
| PRODUCT SUMMARY |
| Field configurable, programmable 12-switch accessory control panel |
| Select from 7 switch types configured with any Windows® PC |
| Switches can be re-programmed and labels re-printed on site |
| Configuration software included with system |
| PRODUCT APPLICATION |
| All types and sizes of truck chassis for mobile electronic and many hydraulic functions |
| All-in-one accessory systems panel |
| PROGRAMMABLE SWITCH FUNCTIONS |
| Momentary on/off: hold on, release off |
| On/off: press on, press off |
| Delayed on: hold on (delays for programmed time) before actuation, press again to turn off |
| Delayed off: press to turn on for a programmed time (auto shut off) |
| Default on: on at start up, press for off |
| Default on/off: initial state is on when power is applied, on/off thereafter |
| COMBINATION CHOICES |
| Mutually exclusive switches - one switch turns off up to 4 others |
| Combination switches - one switch acts as master for up to 4 other switches |
| 2-button guard - requires that two switches be pushed to actuate function |
| Sequencing - series of switches linked in functional sequence; canceling the first switch automatically initiates the next switch in the sequence |
| RELAY PROTECTION AND BREAKERS |
| Each switch controls a relay and is protected by a 10-amp auto reset breaker |
| SWITCH CONFIGURATION UTILITY |
| Works on any Windows® 2000 (or newer) computer |

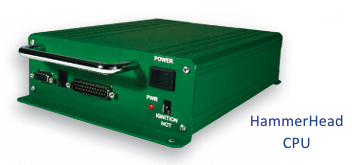

| ELECTRONIC BACKPACK |
| HammerHead system communicating on Certified Power Solutions bus |
| SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| Standalone, bracket mount |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius |
| Maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 15 Amps |
| Fuses rated at 10 Amps |
