UNI-GRIP™ SERIES — PROPORTIONAL PLOW CONTROL
Proportional Plow Control Systems
Effective plow controls require performance, power and precision. Available with fully proportional capabilities and multi-function control in three different configurations, the Uni-Grip™ series of single joysticks from Certified Power Solutions offers precision operations for superior winter maintenance. The Uni-Grip series utilizes our sophisticated Mako™ software, which allows operators to individually program the speed of each direction of motion without changing wiring or making hydraulic modifications.
REQUEST QUOTE
| FEATURES |
| Uni-Grip 412, 620 and 820 models |
| Fully proportional single joystick |
| 2- or 3-axis options |
| Multi-function control |
| Standard safety grip trigger |
| Controls up to 7 hydraulic devices |
| Control up to 20 proportional channels on one stick |
| Configurable for patrol, garbage and leaf collection vehicles |
| Easy capability upgrade options with Mako electronics platform |
| PRODUCT SUMMARY |
| Single joystick for proportional control of hydraulic devices (e.g., hoist, plow, wing, blade) |
| Utilizes Mako Trim™, a Windows® compatible program to set the speed of each direction of motion individually without wiring or hydraulic modifications |
| PRODUCT APPLICATION |
| Multiple vehicle types (patrol trucks for snow/ice, sanitation, leaf collection, etc.) |
| Control of each hydraulic function independently |
| DEVICE AND SIGNAL CAPACITY |
| UG 412 - up to 3 devices; 12 independent PWM channels |
| UG 620 - up to 5 devices; 20 independent PWM channels |
| UG 820 - up to 7 devices; 20 independent PWM channels |
| Frequency range from 40 – 450 Hz |
| JOYSTICK BUTTONS |
| UG 412 - 2 programmable buttons |
| UG 620 - 4 programmable buttons |
| UG 820 - 6 programmable buttons |
| AXIS AND RANGE OF JOYSTICK MOTION |

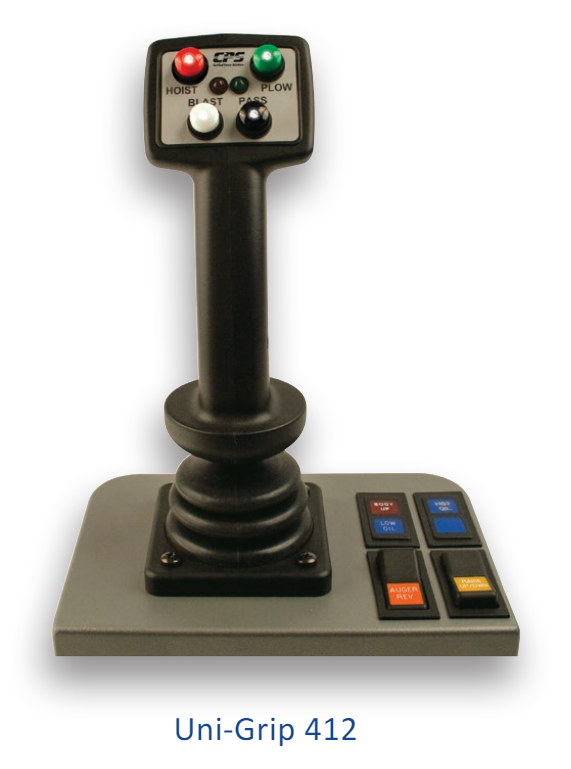

| UG 412 - 2 axes of joystick motion: X and Y |

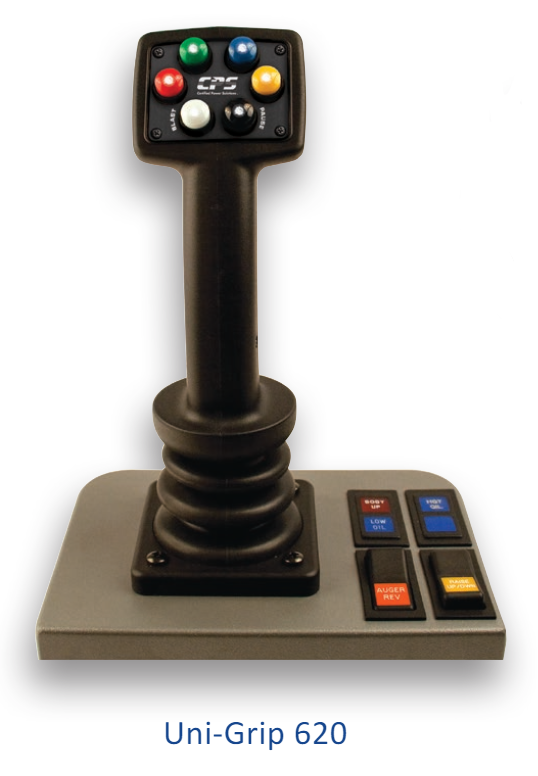

| UG 620 - 3 axes of joystick motion: X, Y and Z |
| UG 820 - 3 axes of joystick motion: X, Y and Z |
| 27 degrees of motion available in each axis |
| JOYSTICK SIGNAL |
| True Hall effect (Magnetic) joystick with no mechanical contacts |
| JOYSTICK SELF TEST DIAGNOSTICS WITH CAN BUS |
| Mako uses CAN bus for a self test of the joystick during each power cycle |
| SafeStik™ automatically disables the axis if an axis fails during use |
| Joystick diagnostics visible on LED, LCD or at valve body |
| Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels |
| COMBO UP (PANIC) FUNCTION |
| Momentary button trigger for parking of up to 6 devices |
| FLOAT FUNCTIONS |
| User settable float controls for plow, wing toe, wing heel and blade |
| PLOW CONTROL INTERLOCKED FEATURES |
| Hoist lock, hoist limit, plow, wing and blade lock (requires external sensor, key or switch) |
| ELECTRONIC BACKPACK |
| Mako multiplexed on CAN bus and Certified Power Solutions bus |
| SYSTEM CONTROLLER |
| Mako Trim works on any Windows® 2000 (or newer) computer |
| Field configurable buttons and function names |
| DISPLAY TYPE |
| UG 412 - LED indication mounted in joystick head |
| UG 620 - graphic LCD (white/blue) or optional color TFT |
| UG 820 - graphic LCD (white/blue) or optional color TFT |
| SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| WARNING INDICATORS |
| Up to 8 labeled and colored indicators integrated into the joystick housing |
| OPTIONAL EQUIPMENT |
| Uni-Grip control of plow float and Moray™ system |
| OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
