MULTI-STIX™ SERIES AND EZ SPREAD™
Integrated Plow & Spreader Controls
The Multi-Stix™ series from Certified Power Solutions brings you precision proportional plow control amplified with function and power. Offering multiple joystick options, Multi-Stix helps provide meticulous operations in three configurations with fully proportional capabilities and multi-function control. Multi-Stix configurations additionally provide the ability to individually program the speed of each direction of motion without changing wiring or making hydraulic modifications by utilizing Certified Power Solutions Mako™ software. The EZ Spread™ features the most reliable controls for basic spreading applications. Designed for granular and pre-wet applications, the EZ Spread electronic spreader control system from Certified Power Solutions combines core functionality with user-friendly operations.
REQUEST QUOTE

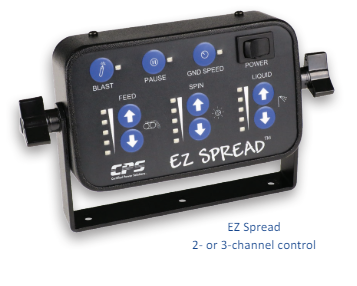

| EZ SPREAD PRODUCT SUMMARY |
| Ground speed oriented or manual spreader control |
| Includes 3 channels for 2- or 3-channel operation |
| Open-loop control for auger, spinner and auxiliary (pre-wet, X-conveyor) channels |
| Adjustable settings from 0–10 |
| Backlit control panel |
| Programmable trim settings |
| EZ SPREAD PROPORTIONAL CHANNELS |
| Independent control of 3 proportional channels |
| Usually configured for auger/conveyor, spinner and either cross auger or pre-wet |
| EZ SPREAD GROUND SPEED OPTIONS |
| Ground speed triggered (GST): starts with truck motion, off when truck stops |
| Ground speed oriented (GSO): on with truck motion, automatically adjusts output to compensate for truck speed, off when truck stops |
| Manual: no ground speed interaction |
| EZ SPREAD HYDRAULIC TRIMMING |
| Configuration mode for hydraulic trimming without manual trim pots |
| EZ SPREAD BLAST AND PAUSE |
| Programmable blast included (on/off, timed) |
| Use pause switch to pause spreading |
| System powers up with pause active to prevent indoor spreading |
| EZ SPREAD OUTPUT SIGNAL |
| Multiple frequency settings for ease of valve compatibility |
| EZ SPREAD POWER SAFETY |
| Power Safe™ signal prevents random grounds powering any hydraulics system attached (auger, spinner, conveyor, etc.) |
| Channel Safe™ detects and protects against open or short circuits on hydraulic drive channels |
| EZ SPREAD OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| EZ SPREAD POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
| MULTI-STIX FEATURES |
| Multi-Stix 216, 320 and 420 models |
| Fully proportional, 1 or 2 axis joysticks |
| Multi-function control on any joystick |
| Selectable safety triggers |
| Hoist, wing or blade lock and limits available |
| Controls up to 6 devices |
| Control up to 20 proportional channels on multiple joysticks |
| Easy capability upgrade options with Mako electronics platform |
| Configurable for snow and ice patrol, garbage and leaf collection trucks |
| MULTI-STIX PRODUCT SUMMARY |
| Multiple joysticks for proportional control of hydraulic devices (e.g., hoist, plow, wing) |
| Utilizes Mako Trim™, a Windows® compatible program to set the speed of each direction of motion individually without wiring or hydraulic modifications |
| MULTI-STIX PRODUCT APPLICATION |
| Multiple vehicle types (patrol trucks for snow/ice, garbage, leaf collection) |
| Control of each hydraulic function on an individual joystick |
| MULTI-STIX DEVICE AND SIGNAL CAPACITY |

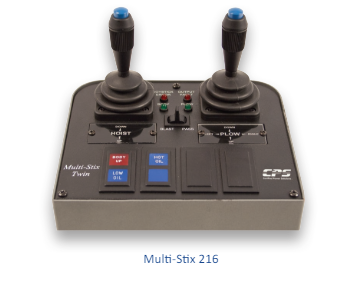

| MS 216 up to 4 devices; 16 independent PWM channels |

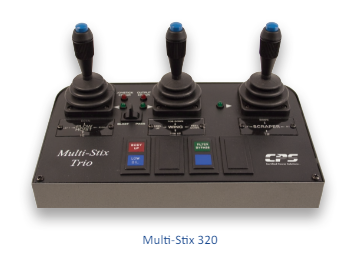

| MS 320 up to 6 devices; 20 independent PWM channels |
| MS 420 up to 8 devices; 20 independent PWM channels |
| Frequency settable from 40 – 450 Hz |
| MULTI-STIX JOYSTICK BUTTON |
| IP 68 top switch for safety interlock (hoist) or second mode actuation |
| MULTI-STIX AXIS AND RANGE OF JOYSTICK MOTION |
| 1 or 2 axes of joystick motion: X and Y |
| 27 degrees of motion available in each axis |
| MULTI-STIX JOYSTICK SIGNAL |
| True Hall effect (magnetic) joystick with no mechanical contacts |
| MULTI-STIX JOYSTICK SELF TEST DIAGNOSTICS WITH CAN BUS |
| Mako uses CAN bus for a self test of the joystick during power cycle |
| SafeStik™ automatically disables the axis if an axis fails during use |
| Joystick diagnostics for each axis of motion is visible on LED |
| Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels |
| MULTI-STIX COMBO-UP (PANIC) BUTTON |
| Momentary button trigger for parking of up to 6 devices |
| MULTI-STIX FLOAT FUNCTIONS |
| User settable float controls for plow, wing toe, wing heel and blade |
| MULTI-STIX PLOW CONTROL INTERLOCKED FEATURES |
| Hoist lock, hoist limit, plow, wing and blade lock (requires external sensor, key or switch) |
| MULTI-STIX ELECTRONIC BACKPACK |
| Mako multiplexed on CAN bus and Certified Power Solutions bus |
| MULTI-STIX SYSTEM CONTROLLER |
| Mako Trim works on any Windows® 2000 or newer computer |
| Software included |
| Field-configurable buttons and function names |
| MULTI-STIX SYSTEM MOUNTING |
| Seat mounted or pedestal mounted |
| MULTI-STIX WARNING INDICATORS |
| Up to 8 labeled and colored indicators integrated into the joystick housing |
| MULTI-STIX OPTIONAL EQUIPMENT |
| Uni-Grip™ control of plow float and Moray™ system |
| MULTI-STIX OPERATING TEMPERATURE RANGE |
| Minimum: –20 degrees Celsius; maximum: 70 degrees Celsius |
| MULTI-STIX POWER REQUIREMENTS |
| Minimum: 11 Volts DC |
| Maximum: 15 Volts DC |
| Maximum: 10 Amps |
| Internal fuse rated at 10 Amps |
