SUN HYDRAULICS
CXCEXZV
- SUN HYDRAULICS
- Material:CXCEXZV
- Model:CXCE-XZV
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCEXZV (CXCEXZV) is a high-performance hydraulic check valve designed for specialized applications requiring a robust solution in a three-port cavity setup. This model functions primarily as a standard two-port check valve but is uniquely engineered to operate in three-port cavities with one port blocked, enhancing its versatility in various hydraulic systems. The CXCEXZV model is specifically crafted to accommodate up to 5000 psi (350 bar) at ports 1 and 2, ensuring it can handle high-pressure environments effectively. With a maximum flow capacity of 15 gpm (60 L/min), this valve is suitable for a wide range of fluid dynamics applications. It features an exceptionally low leakage rate, limited to less than one drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. Additionally, the cartridge is corrosion-resistant, making it ideal for use in environments where corrosive elements are present. The construction of the CXCEXZV incorporates Sun's floating style design which minimizes the risk of internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures consistent performance and longevity of the valve under varied operational conditions. For installation, the valve requires a hex size of 7/8 inches (22.2 mm) and an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), it presents minimal addition to system weight, making it an efficient choice for both stationary and mobile applications. The seal kit provided with this model uses Viton materials (990011006), known for their durability and resistance to high temperatures and chemicals, further enhancing the valve's operational resilience.
The Sun Hydraulics CXCEXZV (CXCEXZV) is a high-performance hydraulic check valve designed for specialized applications requiring a robust solution in a three-port cavity setup. This model functions primarily as a standard two-port check valve but is uniquely engineered to operate in three-port cavities with one port blocked, enhancing its versatility in various hydraulic systems. The CXCEXZV model is specifically crafted to accommodate up to 5000 psi (350 bar) at ports 1 and 2, ensuring it can handle high-pressure environments effectively. With a maximum flow capacity of 15 gpm (60 L/min), this valve is suitable for a wide range of fluid dynamics applications. It features an exceptionally low leakage rate, limited to less than one drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. Additionally, the cartridge is corrosion-resistant, making it ideal for use in environments where corrosive elements are present. The construction of the CXCEXZV incorporates Sun's floating style design which minimizes the risk of internal parts binding\u2014a common issue that can arise from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures consistent performance and longevity of the valve under varied operational conditions. For installation, the valve requires a hex size of 7/8 inches (22.2 mm) and an installation torque between 30 - 35 lbf.ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), it presents minimal addition to system weight, making it an efficient choice for both stationary and mobile applications. The seal kit provided with this model uses Viton materials (990011006), known for their durability and resistance to high temperatures and chemicals, further enhancing the valve's operational resilience.

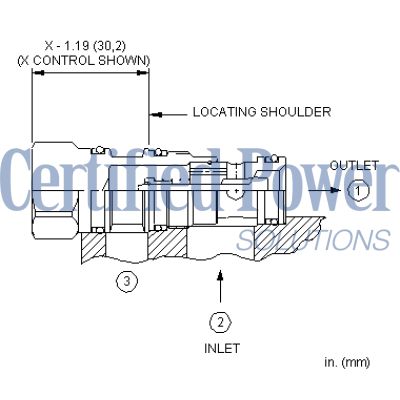

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
