SUN HYDRAULICS
X3V/S
$235.00 USD
- SUN HYDRAULICS
- Material:X3V/S
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

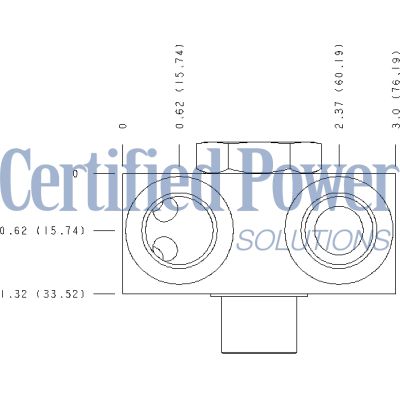

The Sun Hydraulics X3V/S (Material Number: X3V/S) is a versatile line mount manifold designed for hydraulic systems. This model features a banjo bolt interface and is equipped with a through port 3, allowing for efficient fluid transfer within hydraulic circuits. The installation of the banjo bolt requires a torque specification ranging from 90 lb. ft. to 99 lb. ft., or 120 Nm to 132 Nm, ensuring secure and reliable connections. The hex size for the banjo bolt is specified at 1.18 inches, facilitating ease of assembly and maintenance. This manifold includes an open cavity designed to accommodate the T11A cartridge, enhancing its adaptability within various hydraulic setups. With a port size of 12 BSPP, it integrates seamlessly into existing systems requiring this specification. Constructed from high-quality 6061T651 aluminum, the X3V/S manifold offers excellent corrosion resistance and durability, making it suitable for demanding environments where long-term reliability is essential. It\u2019s important to note that while anodizing could potentially improve surface hardness and appearance, Sun Hydraulics opts not to anodize their aluminum bodies due to considerations such as cost implications, potential inconsistencies in appearance, and negative effects on fatigue life. This decision underscores the manufacturer's commitment to maintaining the structural integrity and performance of their products. The X3V/S manifold is an ideal choice for applications that demand robust performance under pressures up to 3000 psi (210 bar). However, users should carefully consider maximum system pressure in relation to manifold material constraints when integrating this component into their systems.
The Sun Hydraulics X3V/S (Material Number: X3V/S) is a versatile line mount manifold designed for hydraulic systems. This model features a banjo bolt interface and is equipped with a through port 3, allowing for efficient fluid transfer within hydraulic circuits. The installation of the banjo bolt requires a torque specification ranging from 90 lb. ft. to 99 lb. ft., or 120 Nm to 132 Nm, ensuring secure and reliable connections. The hex size for the banjo bolt is specified at 1.18 inches, facilitating ease of assembly and maintenance. This manifold includes an open cavity designed to accommodate the T11A cartridge, enhancing its adaptability within various hydraulic setups. With a port size of 12 BSPP, it integrates seamlessly into existing systems requiring this specification. Constructed from high-quality 6061T651 aluminum, the X3V/S manifold offers excellent corrosion resistance and durability, making it suitable for demanding environments where long-term reliability is essential. It\u2019s important to note that while anodizing could potentially improve surface hardness and appearance, Sun Hydraulics opts not to anodize their aluminum bodies due to considerations such as cost implications, potential inconsistencies in appearance, and negative effects on fatigue life. This decision underscores the manufacturer's commitment to maintaining the structural integrity and performance of their products. The X3V/S manifold is an ideal choice for applications that demand robust performance under pressures up to 3000 psi (210 bar). However, users should carefully consider maximum system pressure in relation to manifold material constraints when integrating this component into their systems.
| Body Type | Line mountLine mount |
| Interface | Banjo BoltBanjo Bolt |
| Body Features | Through port 3Through port 3 |
| Banjo Bolt Installation Torque | 90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm)90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm) |
| Banjo Bolt Hex | 1.181.18 |
| Open Cavities | 11 |
| Cavity | T-11A |
| Port Size | 1/2" BSPP1/2" BSPP |
Show FAQ
Additional Resources
- Standard Line Mount Manifolds for High Flow Valves
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Manufacturing Sun Cartridge Cavities
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Custom Integrated Packages from Sun
- Fluid and Temperature Recommendations
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
