SUN HYDRAULICS
RSDCCDV/AP
$384.40 USD
- SUN HYDRAULICS
- Material:RSDCCDV/AP
- Model:RSDC-CDV/AP
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSDCCDV/AP (Material Number: RSDCCDV/AP) is a pilot-operated, balanced piston sequence valve designed to manage the flow to a secondary circuit once the inlet pressure at port 1 surpasses the preset valve threshold. This valve effectively regulates pressure at port 1 concerning the drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It serves as an alternative to two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable, maintaining consistent flow paths and cavity requirements across frame sizes. The pilot flow increases with rising inlet pressure relative to the drain pressure above the valve setting, and a 150-micron stainless steel screen protects the main stage orifice. The maximum allowable pressure at port 3 is additive to the valve setting in a direct 1:1 ratio, not exceeding 5000 psi (350 bar). This model is unsuitable for load-holding applications due to potential spool leakage. The RSDCCDV/AP features corrosion-resistant components\u2014denoted by its AP suffix in the model code\u2014making it ideal for use in corrosive environments. It employs Sun's floating style construction to minimize risks of internal binding from installation torque or machining inconsistencies. The factory-set pressures are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar) and control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min). Its response time averages around 10 ms, with maximum leakage rated at 2 in\u00b3/min under specific conditions. The valve's design includes an adjustable range facilitated by W or Y controls and requires specific installation torques for optimal performance.
The Sun Hydraulics RSDCCDV/AP (Material Number: RSDCCDV/AP) is a pilot-operated, balanced piston sequence valve designed to manage the flow to a secondary circuit once the inlet pressure at port 1 surpasses the preset valve threshold. This valve effectively regulates pressure at port 1 concerning the drain port 3, remaining unaffected by back pressure at port 2 until reaching the valve setting. It serves as an alternative to two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable, maintaining consistent flow paths and cavity requirements across frame sizes. The pilot flow increases with rising inlet pressure relative to the drain pressure above the valve setting, and a 150-micron stainless steel screen protects the main stage orifice. The maximum allowable pressure at port 3 is additive to the valve setting in a direct 1:1 ratio, not exceeding 5000 psi (350 bar). This model is unsuitable for load-holding applications due to potential spool leakage. The RSDCCDV/AP features corrosion-resistant components\u2014denoted by its AP suffix in the model code\u2014making it ideal for use in corrosive environments. It employs Sun's floating style construction to minimize risks of internal binding from installation torque or machining inconsistencies. The factory-set pressures are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar) and control pilot flow between 7-10 in\u00b3/min (0.11-0.16 L/min). Its response time averages around 10 ms, with maximum leakage rated at 2 in\u00b3/min under specific conditions. The valve's design includes an adjustable range facilitated by W or Y controls and requires specific installation torques for optimal performance.

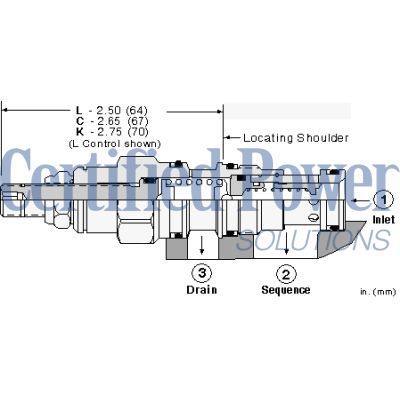

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sequence Valves Technical Tips
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
