SUN HYDRAULICS
RPICLQV
- SUN HYDRAULICS
- Material:RPICLQV
- Model:RPIC-LQV
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

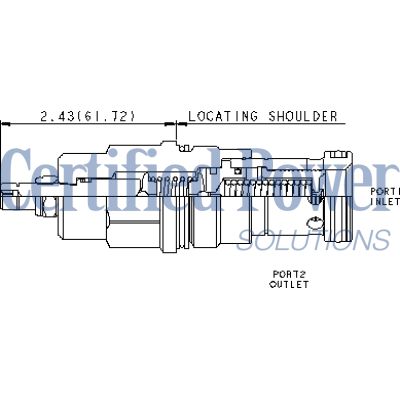

The Sun Hydraulics RPICLQV (RPICLQV) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the preset level, effectively throttling flow to maintain consistent pressure. Known for its accuracy, low-pressure rise versus flow, and smooth operation, this valve is moderately fast and operates quietly. It accepts maximum pressure at port 2 and is suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. However, it is not recommended for load-holding applications due to potential spool leakage. This cartridge features a unique floating style construction that minimizes binding risks from excessive installation torque or machining variations. It incorporates corrosion-resistant options identified by suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. The RPICLQV can handle back pressure on the tank port directly additive to the valve setting at a 1:1 ratio and allows interchangeability among all 2-port relief cartridges of similar frame size. With a capacity of up to 100 gpm (380 L/min) and a maximum operating pressure of 5000 psi (350 bar), it offers typical response times of around 10 milliseconds. The valve's adjustment can be fine-tuned with up to five clockwise turns to increase the setting, utilizing an internal hex adjustment screw. Installation requires specific torque values: 150-160 lbf ft (203-217 Nm) for the valve body and 80-90 lbf in (9-10 Nm) for the locknut. The model weighs approximately 1.20 lb (0.55 kg) and uses Viton seals with an available seal kit part number of 990016006.
The Sun Hydraulics RPICLQV (RPICLQV) is a pilot-operated, balanced piston relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the preset level, effectively throttling flow to maintain consistent pressure. Known for its accuracy, low-pressure rise versus flow, and smooth operation, this valve is moderately fast and operates quietly. It accepts maximum pressure at port 2 and is suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice is protected by a 150-micron stainless steel screen. However, it is not recommended for load-holding applications due to potential spool leakage. This cartridge features a unique floating style construction that minimizes binding risks from excessive installation torque or machining variations. It incorporates corrosion-resistant options identified by suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. The RPICLQV can handle back pressure on the tank port directly additive to the valve setting at a 1:1 ratio and allows interchangeability among all 2-port relief cartridges of similar frame size. With a capacity of up to 100 gpm (380 L/min) and a maximum operating pressure of 5000 psi (350 bar), it offers typical response times of around 10 milliseconds. The valve's adjustment can be fine-tuned with up to five clockwise turns to increase the setting, utilizing an internal hex adjustment screw. Installation requires specific torque values: 150-160 lbf ft (203-217 Nm) for the valve body and 80-90 lbf in (9-10 Nm) for the locknut. The model weighs approximately 1.20 lb (0.55 kg) and uses Viton seals with an available seal kit part number of 990016006.
Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 100 gpm380 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.@1000 psi65 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.20 lb0,55 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
