SUN HYDRAULICS
RPGSKCV

$129.30 USD

SUN HYDRAULICS
Material:RPGSKCV
Model:RPGS-KCV
Summary:Cartridge

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPGSKCV (RPGSKCV) is a pilot-operated, balanced poppet relief cartridge valve designed for precise pressure regulation in hydraulic systems. This normally closed valve begins to open to tank port 2 when the inlet port 1 pressure reaches the predetermined setting, effectively throttling flow to maintain desired pressure levels. The RPGSKCV is noted for its accuracy, smooth operation, quiet performance, quick response time of approximately 7 milliseconds, and minimal pressure rise versus flow. It is engineered to handle maximum pressures up to 5000 psi (350 bar) and features a main stage orifice protected by a 150-micron stainless steel screen. This valve is suitable for use in cross port relief circuits and load-holding applications due to its ability to accept maximum pressure at port 2. Additionally, it remains relatively unaffected by variations in oil temperature and contamination. The back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. For systems using phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these seals should not be exposed to petroleum-based fluids as they may incur damage. The RPGSKCV incorporates Sun's floating style construction, minimizing potential binding issues from excessive installation torque or machining variations. Corrosion-resistant options are available with either stainless steel or zinc-nickel plated components identified by model code suffixes AP or LH respectively. Installation requires specific torque settings: the valve hex size is 1-1/8 inches with an installation torque of 45-50 lbf-ft (61-68 Nm). The adjustment screw has an internal hex size of 5/32 inches, while the locknut hex size is 9/16 inches with a torque of 80-90 lbf-in (9-10 Nm). This model weighs approximately .50 lb (0.25 kg) and uses Viton seal kit number 990303006 for maintenance and repairs.

Description

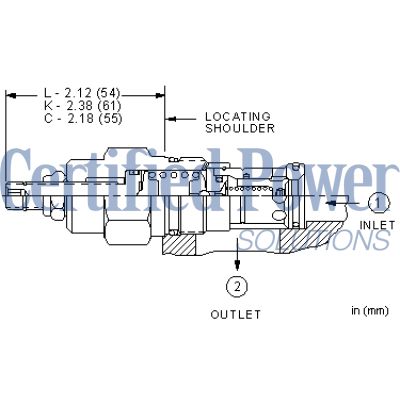

Pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, smooth, quiet, fast, and have low pressure rise vs. flow.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Suitable for use in load holding applications.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-3A
Series	2
Capacity	50 gpm200 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	7 ms7 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.50 lb0,25 kg
Seal kit - Cartridge	Viton: 990-303-006

Show FAQ

What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
