The Sun Hydraulics RPECKPV (RPECKPV) is a pilot-operated, balanced piston relief cartridge valve designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy, smooth operation, and moderate response speed, this valve features a low pressure rise versus flow characteristic. It is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, excluding pilot reliefs. The valve can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen; however, it is not recommended for load-holding applications due to potential spool leakage. The back pressure on tank port 2 directly affects the valve setting at a 1:1 ratio. Cartridges with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The RPECKPV model can be configured with corrosion-resistant components identified by suffixes AP or LH for enhanced durability in corrosive environments. This cartridge incorporates Sun's floating style construction to prevent internal part binding due to excessive installation torque or cavity machining variations. It has a capacity of 25 gpm (95 L/min) and operates at a maximum pressure of 5000 psi (350 bar). With a typical response time of 10 ms and minimal leakage at specified conditions, this valve is adjustable throughout its range using W or Y controls unless a special setting is specified as the maximum limit. Installation requires specific torque settings and hex sizes for adjustment screw and locknut operations.
The Sun Hydraulics RPECKPV (RPECKPV) is a pilot-operated, balanced piston relief cartridge valve designed for precise pressure regulation in hydraulic systems. This normally closed valve opens to the tank port when the inlet pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy, smooth operation, and moderate response speed, this valve features a low pressure rise versus flow characteristic. It is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size, excluding pilot reliefs. The valve can handle maximum pressure at port 2, making it suitable for cross-port relief circuits, although spool leakage should be considered in such applications. The main stage orifice is safeguarded by a 150-micron stainless steel screen; however, it is not recommended for load-holding applications due to potential spool leakage. The back pressure on tank port 2 directly affects the valve setting at a 1:1 ratio. Cartridges with EPDM seals are compatible with phosphate ester fluids but are susceptible to damage from petroleum-based substances. The RPECKPV model can be configured with corrosion-resistant components identified by suffixes AP or LH for enhanced durability in corrosive environments. This cartridge incorporates Sun's floating style construction to prevent internal part binding due to excessive installation torque or cavity machining variations. It has a capacity of 25 gpm (95 L/min) and operates at a maximum pressure of 5000 psi (350 bar). With a typical response time of 10 ms and minimal leakage at specified conditions, this valve is adjustable throughout its range using W or Y controls unless a special setting is specified as the maximum limit. Installation requires specific torque settings and hex sizes for adjustment screw and locknut operations.

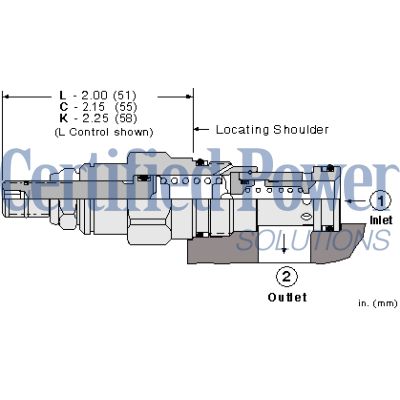

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 25 gpm95 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Pressure Relief and Regulating Valves
- Manufacturing Sun Cartridge Cavities
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
