$288.70 USD
  • SUN HYDRAULICS
  • Material:PPHBYWN
  • Model:PPHB-YWN
  • Summary:Cartridge

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics PPHBYWN (PPHBYWN) is a pilot-operated, pressure-reducing/relieving valve designed to manage and stabilize hydraulic systems by reducing high primary pressure at inlet port 2 to a consistent reduced pressure at port 1. It features a full-flow relief function from port 1 to tank port 3. This valve is engineered for stability and low hysteresis, with exceptionally flat pressure-flow characteristics. The maximum permissible pressure at port 3 should not exceed 3000 psi (210 bar), while the recommended maximum inlet pressure varies based on the adjustment range: Ranges D, E, N, and Q are tested with a differential of up to 2000 psi (140 bar), while Ranges A, B, and H allow for up to 3000 psi (210 bar), and Ranges C and W can handle an inlet pressure of up to 5000 psi (350 bar). The PPHBYWN valve incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations. It supports a control pilot flow of 15-20 in\u00b3/min (0.25-0.33 L/min) and has an adjustable range using W or Y controls with or without a special setting. This model is suitable for systems using phosphate ester fluids when equipped with EPDM seals; exposure to petroleum-based fluids will damage these seals. For mounting configurations, it is advisable to use a full capacity return line at port 3 with reducing/relieving cartridges. The valve allows reverse flow from reduced pressure port 1 to inlet port 2 but may require an additional check valve if reverse free flow is needed in the circuit. If pilot flow consumption is critical, direct-acting reducing/relieving valves are recommended as an alternative solution for superior dynamic response.

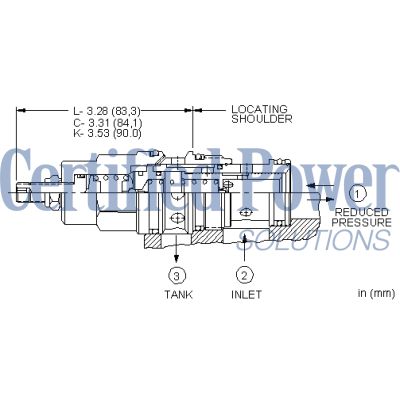

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-17A
Series3
Capacity40 gpm160 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow15 - 20 in³/min.0,25 - 0,33 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/4 in.31,8 mm
Valve Installation Torque150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight1.30 lb0,60 kg
Seal kit - CartridgeViton: 990-017-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
