SUN HYDRAULICS
PPFBCEV

  • SUN HYDRAULICS
  • Material:PPFBCEV
  • Model:PPFB-CEV
  • Summary:Cartridge

Due to extremely high demand, please call 888-905-7411 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

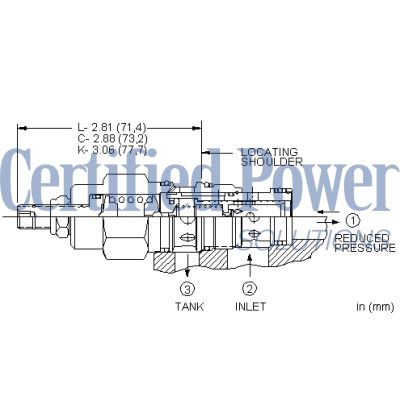

The Sun Hydraulics PPFBCEV (PPFBCEV) is a pilot-operated, pressure reducing-relieving valve designed to regulate high primary pressure at inlet port 2 to a consistent reduced pressure at port 1, featuring a full-flow relief function from port 1 to tank port 3. The valve's construction allows for pressure at port 3 to be directly additive to the valve setting at a 1:1 ratio, with a maximum limit of 3000 psi (210 bar). The recommended maximum inlet pressure varies based on the adjustment range, with specific ranges such as D, E, N, and Q tested up to a differential of 2000 psi (140 bar), and ranges A, B, and H up to 3000 psi (210 bar). The PPFBCEV exhibits stable performance with low hysteresis due to its pilot-operated design, though it is not intended for fast-acting applications. For systems requiring superior dynamic response, direct-acting valves are recommended. This model incorporates Sun's floating style construction to minimize internal binding due to excessive installation torque or machining variations. It is compatible with EPDM seals for use in systems with phosphate ester fluids but should avoid exposure to petroleum-based fluids. The cartridge is interchangeable within its series and frame size, allowing flexibility in mounting configurations. Additionally, it provides reverse flow capability from reduced pressure port 1 back to inlet port 2; however, reverse free flow may necessitate an additional check valve in the circuit. The valve supports various control settings and can be adjusted using W or Y controls without special settings unless specified otherwise. It features a cavity type T-2A series configuration with a capacity of up to 20 gpm (80 L/min) and operates under maximum pressures of up to 5000 psi (350 bar).

Pilot-operated, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3).

  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 3000 psi (210 bar).
  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar).
  • Recommended maximum inlet pressure is determined by the adjustment range. Ranges D, E, N, and Q are tested with a 2000 psi (140 bar) maximum differential between inlet and reduced pressure. Ranges A, B, and H are tested with a 3000 psi (210 bar) maximum differential between inlet and reduced pressure. Ranges C and W are tested with 5000 psi (350 bar) of inlet pressure.
  • Pilot operated valves exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis.
  • Pilot operated reducing, reducing/relieving valves by nature are not fast acting valves. For superior dynamic response, consider direct acting valves.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • If pilot flow consumption is critical, consider using direct acting reducing/relieving valves.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-2A
Series2
Capacity20 gpm80 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Control Pilot Flow10 - 15 in³/min.0,16 - 0,25 L/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size1 1/8 in.28,6 mm
Valve Installation Torque45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.60 lb0,30 kg
Seal kit - CartridgeViton: 990-202-006

Show FAQ

Additional Resources



Notes:
  • Maximum pressure differentials for spring ranges: A and B are 3000 psi (210 bar) N and Q are 2000 psi (140 bar) W is 5000 psi (350 bar)inlet pressure
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
