SUN HYDRAULICS
FMDBDAV224N
$262.10 USD
- SUN HYDRAULICS
- Material:FMDBDAV224N
- Model:FMDB-DAV@224N
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

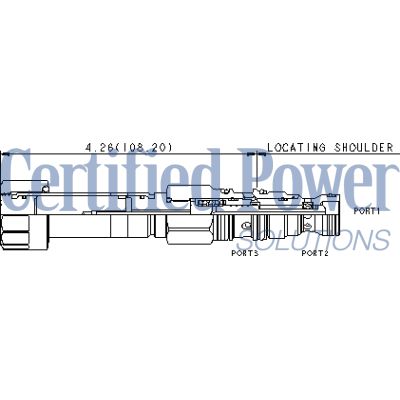

The Sun Hydraulics FMDBDAV224N (FMDBDAV224N) is a 3-way, meter-in, electro-proportional throttle valve designed for precise flow control in hydraulic systems. When unenergized, this valve configuration blocks the supply at port 1 while connecting port 2 to the tank at port 3. Upon energizing the coil, a closing force is applied to the spool, creating a metering orifice in the 1 to 2 direction proportional to the coil command current. This valve offers self-compensation in this direction and can be pressure compensated with an external compensator for enhanced flow control. However, flow between ports 2 and 3 is not proportional. The FMDBDAV224N facilitates closed transition between positions and allows users to create a 4-way system using two of these valves without requiring custom spools. For pressure compensation, it can be paired with modulating logic elements like LRCXHN for bypass circuits or LPCXHN for restrictive circuits. The valve features Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. With a capacity of 6 gpm (23 L/min), all ports can handle up to 5000 psi (350 bar). It has interchangeable coils compatible with other Sun solenoid-operated valves and can be mounted bi-directionally on the tube. For optimal performance, an amplifier with current sensing and adjustable dither (100 - 250 Hz) is recommended. The manual override options include temporary actuation mechanisms with approximately 7,000 cycles of mechanical life expectancy. The design also incorporates a momentary-twist override option for manual operation by rotating the override clockwise by 90 degrees. The valve's cavity is T-11A, series-1 compatible, and it features specific dimensions such as a solenoid tube diameter of .75 inches and an installation torque requirement of 30 - 35 lbf ft (41 - 47 Nm). Viton seal kits are available for both cartridge and coil applications.
The Sun Hydraulics FMDBDAV224N (FMDBDAV224N) is a 3-way, meter-in, electro-proportional throttle valve designed for precise flow control in hydraulic systems. When unenergized, this valve configuration blocks the supply at port 1 while connecting port 2 to the tank at port 3. Upon energizing the coil, a closing force is applied to the spool, creating a metering orifice in the 1 to 2 direction proportional to the coil command current. This valve offers self-compensation in this direction and can be pressure compensated with an external compensator for enhanced flow control. However, flow between ports 2 and 3 is not proportional. The FMDBDAV224N facilitates closed transition between positions and allows users to create a 4-way system using two of these valves without requiring custom spools. For pressure compensation, it can be paired with modulating logic elements like LRCXHN for bypass circuits or LPCXHN for restrictive circuits. The valve features Sun's floating style construction to minimize internal binding risks due to installation torque or machining variations. With a capacity of 6 gpm (23 L/min), all ports can handle up to 5000 psi (350 bar). It has interchangeable coils compatible with other Sun solenoid-operated valves and can be mounted bi-directionally on the tube. For optimal performance, an amplifier with current sensing and adjustable dither (100 - 250 Hz) is recommended. The manual override options include temporary actuation mechanisms with approximately 7,000 cycles of mechanical life expectancy. The design also incorporates a momentary-twist override option for manual operation by rotating the override clockwise by 90 degrees. The valve's cavity is T-11A, series-1 compatible, and it features specific dimensions such as a solenoid tube diameter of .75 inches and an installation torque requirement of 30 - 35 lbf ft (41 - 47 Nm). Viton seal kits are available for both cartridge and coil applications.
This valve is a 3-way, meter-in, electro-proportional throttle. The flow path, unenergized, has the supply blocked at port 1 and port 2 connected to tank at port 3. Energizing the coil generates a closing force on the spool, creating a metering orifice in the 1 to 2 direction that is proportional to the coil command current. The valve self-compensates in the 1 to 2 direction and with the addition of an external compensator will provide pressure compensated flow control. Flow in the 2 to 3 direction is not proportional.
- The transition between positions is closed.
- Using 2 3-ways to create a 4-way allows one to choose existing flow ranges instead of cutting a special spool.
- These valves may be pressure compensated by an external, modulating, logic element. Use LR_C-XHN for a bypass circuit or LP_C-XHN for a restrictive circuit.
- The valve provides a degree of self-compensation and may be used as a flow control. To increase the accuracy of flow control, an external, modulating, logic element can be used to maintain a constant flow over a wider range of flows and pressures. See performance curves for additional information.
- All ports will accept 5000 psi (350 bar).
- Coils are interchangeable with Sun's other full flow, solenoid-operated valves and can be mounted on the tube in either direction.
- For optimum performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, E, L and T manual control assemblies have a mechanical life expectancy of approximately 7,000 cycles.
- The momentary/twist override option "E" allows the operator to shift the valve by twisting the manual override clockwise 90 degrees.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 6 gpm23 L/min. |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight (with coil) | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-411-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
