SUN HYDRAULICS
DPBALAV
$105.70 USD
- SUN HYDRAULICS
- Material:DPBALAV
- Model:DPBA-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DPBALAV (DPBALAV) is a normally open, pilot-operated, 2-way directional cartridge valve designed for moderate flow circuits. It can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold, with pressure at port 3 directly adding to the valve setting. This makes port 3 potentially unsuitable as a work port unless a 4-port version is utilized. The DPBALAV features interchangeable direct-acting and pilot-operated versions that fit the same cavities and exhibit identical flow paths. It is not bistable but can modulate between two positions as shown in its schematic. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar) due to fatigue strength constraints rather than hydraulic operating limits. In scenarios where pilot pressure exceeds the valve setting, pilot flow consumption becomes critical; the direct acting variant may be preferable if this poses an issue. The DPBALAV incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or cavity/cartridge machining variations. The valve fits into a T-11A cavity, belongs to series 1, and has a capacity of 7 gpm (28 L/min). Factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Control pilot flow ranges from 7 to 10 in\u00b3/min (0.11 to 0.16 L/min), while maximum valve leakage at viscosity levels of 110 SUS (24 cSt) is capped at 1 in\u00b3/min/1000 psi (15 cc/min/70 bar). The adjustment mechanism allows for up to five clockwise turns to increase settings, with specified installation torques for various components ensuring secure assembly and operation.
The Sun Hydraulics DPBALAV (DPBALAV) is a normally open, pilot-operated, 2-way directional cartridge valve designed for moderate flow circuits. It can function independently or in conjunction with larger pilot-operated directional or logic cartridges. The valve operates by shifting when the pressure differential between port 1 and port 3 surpasses its set threshold, with pressure at port 3 directly adding to the valve setting. This makes port 3 potentially unsuitable as a work port unless a 4-port version is utilized. The DPBALAV features interchangeable direct-acting and pilot-operated versions that fit the same cavities and exhibit identical flow paths. It is not bistable but can modulate between two positions as shown in its schematic. The maximum allowable pressure at port 3 is limited to 3000 psi (210 bar) due to fatigue strength constraints rather than hydraulic operating limits. In scenarios where pilot pressure exceeds the valve setting, pilot flow consumption becomes critical; the direct acting variant may be preferable if this poses an issue. The DPBALAV incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or cavity/cartridge machining variations. The valve fits into a T-11A cavity, belongs to series 1, and has a capacity of 7 gpm (28 L/min). Factory pressure settings are established at a flow rate of 4 gpm (15 L/min), with a maximum operating pressure of 5000 psi (350 bar). Control pilot flow ranges from 7 to 10 in\u00b3/min (0.11 to 0.16 L/min), while maximum valve leakage at viscosity levels of 110 SUS (24 cSt) is capped at 1 in\u00b3/min/1000 psi (15 cc/min/70 bar). The adjustment mechanism allows for up to five clockwise turns to increase settings, with specified installation torques for various components ensuring secure assembly and operation.

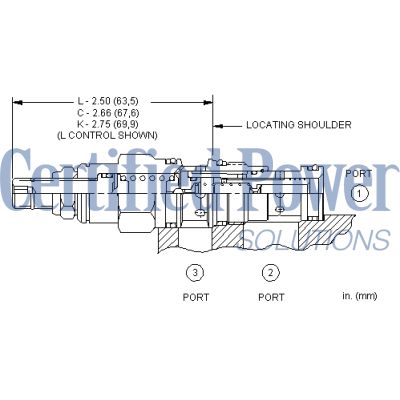

Normally open, pilot-operated, 2-way directional cartridges are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot-operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 3 exceeds the setting.
- Pressure at port 3 is directly additive to the setting of the valve. Because of this, port 3 may not be useable as a work port in your circuit. If this is a consideration, the 4 port version of this valve may be a solution.
- Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
- This valve is not bistable; it is capable of modulating between the two positions shown.
- Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
- When pilot pressure exceeds the valve setting, pilot flow may be a consideration. See performance curves for pilot consumption vs. load pressure above the valve setting. If this is a problem, the direct acting version of this valve would be a solution.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 7 gpm28 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 7 - 10 in³/min.0,11 - 0,16 L/min. |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 in³/min.@1000 psi15 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
