SUN HYDRAULICS
DNDASEN912N
- SUN HYDRAULICS
- Material:DNDASEN912N
- Model:DNDA-SEN@912N
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DNDASEN912N (DNDASEN912N) is a solenoid-operated 4-way, 2-position cartridge valve designed with a soft shift feature to minimize system shock during valve actuation. This direct-acting, balanced spool directional valve is suitable for applications where reducing hydraulic shock is critical but not where precise timing is necessary. The soft shift feature increases response time, typically ranging from 150 ms to 300 ms, depending on factors such as flow, pressure, and oil viscosity. It is essential for port 1 to maintain positive pressure for consistent performance. The valve includes a push-type manual override control; however, other manual controls cannot be ordered with the soft shift but can be installed later. It features a wet armature design to enhance solenoid efficiency and reliability. The solenoid tube assembly is fatigue-rated for up to 5000 psi (350 bar), making it robust for demanding environments. The valve's construction minimizes internal binding risks due to installation torque or machining variations and incorporates coil connector options rated up to IP69K for environmental protection. It fits into cavity T-31A and has a capacity of 4 gpm (15 L/min). Maximum operating pressure reaches up to 5000 psi (350 bar), with leakage rates at maximum valve leakage of 10 in\u00b3/min at 3000 psi (160 cc/min at 210 bar). The manual override requires a force of approximately 5 lbs/1000 psi (33 N/100 bar) at port 1 and has a stroke length of .10 inches (2.5 mm). Its compact design includes a solenoid tube diameter of .75 inches (19 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for optimal performance.
The Sun Hydraulics DNDASEN912N (DNDASEN912N) is a solenoid-operated 4-way, 2-position cartridge valve designed with a soft shift feature to minimize system shock during valve actuation. This direct-acting, balanced spool directional valve is suitable for applications where reducing hydraulic shock is critical but not where precise timing is necessary. The soft shift feature increases response time, typically ranging from 150 ms to 300 ms, depending on factors such as flow, pressure, and oil viscosity. It is essential for port 1 to maintain positive pressure for consistent performance. The valve includes a push-type manual override control; however, other manual controls cannot be ordered with the soft shift but can be installed later. It features a wet armature design to enhance solenoid efficiency and reliability. The solenoid tube assembly is fatigue-rated for up to 5000 psi (350 bar), making it robust for demanding environments. The valve's construction minimizes internal binding risks due to installation torque or machining variations and incorporates coil connector options rated up to IP69K for environmental protection. It fits into cavity T-31A and has a capacity of 4 gpm (15 L/min). Maximum operating pressure reaches up to 5000 psi (350 bar), with leakage rates at maximum valve leakage of 10 in\u00b3/min at 3000 psi (160 cc/min at 210 bar). The manual override requires a force of approximately 5 lbs/1000 psi (33 N/100 bar) at port 1 and has a stroke length of .10 inches (2.5 mm). Its compact design includes a solenoid tube diameter of .75 inches (19 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The model weighs approximately .60 lb (.30 kg) and uses Viton seal kits for optimal performance.
This solenoid-operated 4-way, 2-position cartridge is a direct-acting, balanced spool directional valve with a soft shift feature. The soft shift feature greatly reduces system shock due to valve actuation.
- The soft shift cartridge is interchangeable with the standard cartridge, however, the performance limits are lower.
- The soft shift feature can greatly reduce shock due to valve actuation but should not be counted upon in applications where timing is critical. If you need accurate ramping or timing control, consider Sun's electro-proportional valves.
- The soft shift feature results in significant increase in response time over Sun's standard solenoid. Response time is dependant on flow, pressure, coil voltage, oil viscosity and ambient temperature. Typical response time ranges from 150 ms to 300 ms.
- For consistent soft shift performance, port 1 should be at a positive pressure.
- This valve includes a push-type manual override control. Other manual control options such as T or D, cannot be ordered with the soft shift control but can be installed easily in the field. See Twist/Lock Manual Override link above for details. Please note: Manual override functionality is not compatible with weatherized coils.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- The solenoid's unique magnetic design results in a high efficiency solenoid, yielding high spool actuating force per Watt expended, leading to reliable valve shifting.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details. Additional weatherized coils and kits are available for more complete environmental protection.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

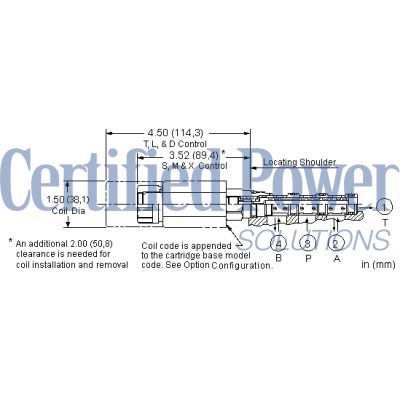

| Cavity | T-31A |
| Series | 1 |
| Capacity | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 10 in³/min.@3000 psi160 cc/min.@210 bar |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-431-006 |
