SUN HYDRAULICS
DMDADBN212
- SUN HYDRAULICS
- Material:DMDADBN212
- Model:DMDA-DBN@212
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DMDADBN212 (DMDADBN212) is a solenoid-operated 3-way, 2-position cartridge valve designed for high-performance hydraulic systems. This direct-acting, balanced spool directional valve features a fatigue rating for 5000 psi (350 bar) service, making it suitable for robust applications. The valve's spools B and R are closed during the transition between positions, which enhances performance by providing faster and more consistent response times, particularly when used as pilot controls. This model is direct-actuated and operates without requiring a minimum hydraulic pressure, allowing for flexible installation in various system configurations. It includes manual override options with a detent mechanism designed for temporary actuation; these are available in models equipped with D or L control. The mechanical life expectancy of these manual control assemblies is estimated at around 7,000 cycles. For systems using phosphate ester fluids, cartridges configured with EPDM seals are recommended as exposure to petroleum-based fluids can damage these seals. The DMDADBN212 also utilizes a wet armature design where the working fluid surrounds the armature; this is crucial to consider as prolonged energization can lead to fluid degradation at high temperatures. Further enhancing its versatility, the coils of this valve are interchangeable with other Sun Series 1 solenoid products and can be mounted in either direction on the tube. The valve also incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of up to 12 gpm (45 L/min), typical response time of 50 ms, and maximum operating pressure of 5000 psi (350 bar). This model's switching frequency can reach up to 15,000 cycles/hr., highlighting its capability for high-frequency operation within hydraulic circuits.
The Sun Hydraulics DMDADBN212 (DMDADBN212) is a solenoid-operated 3-way, 2-position cartridge valve designed for high-performance hydraulic systems. This direct-acting, balanced spool directional valve features a fatigue rating for 5000 psi (350 bar) service, making it suitable for robust applications. The valve's spools B and R are closed during the transition between positions, which enhances performance by providing faster and more consistent response times, particularly when used as pilot controls. This model is direct-actuated and operates without requiring a minimum hydraulic pressure, allowing for flexible installation in various system configurations. It includes manual override options with a detent mechanism designed for temporary actuation; these are available in models equipped with D or L control. The mechanical life expectancy of these manual control assemblies is estimated at around 7,000 cycles. For systems using phosphate ester fluids, cartridges configured with EPDM seals are recommended as exposure to petroleum-based fluids can damage these seals. The DMDADBN212 also utilizes a wet armature design where the working fluid surrounds the armature; this is crucial to consider as prolonged energization can lead to fluid degradation at high temperatures. Further enhancing its versatility, the coils of this valve are interchangeable with other Sun Series 1 solenoid products and can be mounted in either direction on the tube. The valve also incorporates Sun's floating style construction which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. Key specifications include a flow capacity of up to 12 gpm (45 L/min), typical response time of 50 ms, and maximum operating pressure of 5000 psi (350 bar). This model's switching frequency can reach up to 15,000 cycles/hr., highlighting its capability for high-frequency operation within hydraulic circuits.

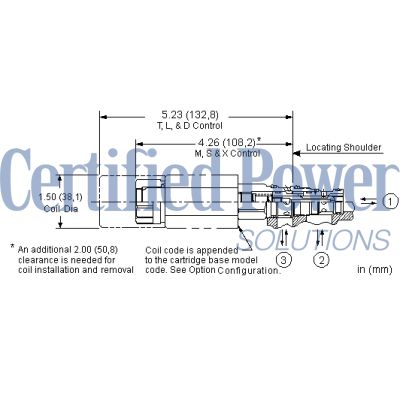

This solenoid-operated 3-way, 2-position cartridge is a direct-acting, balanced spool directional valve.
- The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
- Spools B and R are closed in the transition between their two positions. This results in a higher performance limit at the expense of lower capacity. When used as pilot controls, where capacity is not a factor, the closed transition will provide faster and more consistent response times.
- This valve is direct actuated and requires no minimum hydraulic pressure for operation.
- On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
- Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 50 ms50 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 in³/min.@3000 psi80 cc/min.@210 bar |
| Switching Frequency | 15000 cycles/hr15000 cycles/hr |
| Manual Override Force Requirement | 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1 |
| Manual Override Stroke | .10 in.2,5 mm |
| Solenoid Tube Diameter | .75 in.19 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-411-006 |
| Seal and nut kit - Coil | Viton: 990-770-006Viton: 990-770-006 |
