SUN HYDRAULICS
DDFGXZN
$344.82 USD
- SUN HYDRAULICS
- Material:DDFGXZN
- Model:DDFG-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXZN (DDFGXZN) is a high-performance, two-position, 3-way directional cartridge valve designed for advanced hydraulic systems. This model features six ports with port 5 unused, allowing for flexible configuration in various applications. The DDFGXZN operates with a maximum capacity of 40 gpm (160 L/min) and can handle pressures up to 5000 psi (350 bar). It incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, enhancing the valve's longevity and reliability. The valve's design includes Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance even under stringent operational conditions. The DDFGXZN requires a minimum pilot pressure of 160 psi (11 bar) to shift, and full shifting at the rated flow needs a pilot pressure of 290 psi (20 bar). Each path's leakage is meticulously documented to ensure transparency in performance metrics. Additionally, the model is equipped with a Viton seal kit suitable for various hydraulic fluids and environmental conditions, ensuring robust sealing capabilities. With an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm) and a modest weight of 2.90 lbs (1.30 kg), this valve is both easy to install and maintain. The Sun Hydraulics DDFGXZN is ideal for applications requiring precise control over fluid direction and pressure within advanced hydraulic systems.
The Sun Hydraulics DDFGXZN (DDFGXZN) is a high-performance, two-position, 3-way directional cartridge valve designed for advanced hydraulic systems. This model features six ports with port 5 unused, allowing for flexible configuration in various applications. The DDFGXZN operates with a maximum capacity of 40 gpm (160 L/min) and can handle pressures up to 5000 psi (350 bar). It incorporates a hardened spool and sleeve that ensure low leakage rates and superior wear characteristics, enhancing the valve's longevity and reliability. The valve's design includes Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance even under stringent operational conditions. The DDFGXZN requires a minimum pilot pressure of 160 psi (11 bar) to shift, and full shifting at the rated flow needs a pilot pressure of 290 psi (20 bar). Each path's leakage is meticulously documented to ensure transparency in performance metrics. Additionally, the model is equipped with a Viton seal kit suitable for various hydraulic fluids and environmental conditions, ensuring robust sealing capabilities. With an installation torque range of 150-160 lbf\u00b7ft (203-217 Nm) and a modest weight of 2.90 lbs (1.30 kg), this valve is both easy to install and maintain. The Sun Hydraulics DDFGXZN is ideal for applications requiring precise control over fluid direction and pressure within advanced hydraulic systems.

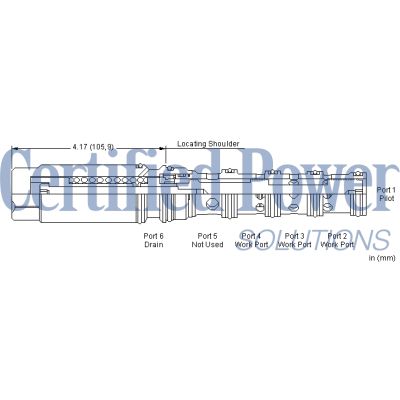

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
