SUN HYDRAULICS
DDFGXYV
$356.48 USD
- SUN HYDRAULICS
- Material:DDFGXYV
- Model:DDFG-XYV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics DDFGXYV (DDFGXYV) is a versatile hydraulic directional cartridge valve, designed for high-pressure applications up to 5000 psi (350 bar). This two-position, 3-way directional valve features a unique 6-port configuration, although port 5 is unused. It offers customizable functionality with up to five different spool configurations, accommodating various hydraulic control requirements. The valve's supply port is designated as port 3. Key specifications include a maximum capacity of 40 gpm (160 L/min), with the minimum and full shift pilot pressures required at 160 psi (11 bar) and 290 psi (20 bar), respectively. The DDFGXYV is engineered for durability and consistent performance, featuring a hardened spool and sleeve that reduce leakage rates and enhance wear characteristics. This model also incorporates Sun\u2019s floating style construction which helps prevent internal parts from binding due to installation torque or machining variations of the cavity/cartridge. The valve's cavity type is T53A, belonging to the Series 3 line of Sun Hydraulics' products. Operational efficiency is further supported by its design that minimizes leakage\u2014specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, it requires a torque between 150-160 lbf-ft (203-217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). The unit weighs approximately 2.90 lbs (1.30 kg), ensuring it integrates well into various machine frameworks without adding significant weight. The seal kit compatible with this cartridge uses Viton components, ensuring reliable sealing under varying operational conditions.
The Sun Hydraulics DDFGXYV (DDFGXYV) is a versatile hydraulic directional cartridge valve, designed for high-pressure applications up to 5000 psi (350 bar). This two-position, 3-way directional valve features a unique 6-port configuration, although port 5 is unused. It offers customizable functionality with up to five different spool configurations, accommodating various hydraulic control requirements. The valve's supply port is designated as port 3. Key specifications include a maximum capacity of 40 gpm (160 L/min), with the minimum and full shift pilot pressures required at 160 psi (11 bar) and 290 psi (20 bar), respectively. The DDFGXYV is engineered for durability and consistent performance, featuring a hardened spool and sleeve that reduce leakage rates and enhance wear characteristics. This model also incorporates Sun\u2019s floating style construction which helps prevent internal parts from binding due to installation torque or machining variations of the cavity/cartridge. The valve's cavity type is T53A, belonging to the Series 3 line of Sun Hydraulics' products. Operational efficiency is further supported by its design that minimizes leakage\u2014specified at 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). For installation, it requires a torque between 150-160 lbf-ft (203-217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). The unit weighs approximately 2.90 lbs (1.30 kg), ensuring it integrates well into various machine frameworks without adding significant weight. The seal kit compatible with this cartridge uses Viton components, ensuring reliable sealing under varying operational conditions.

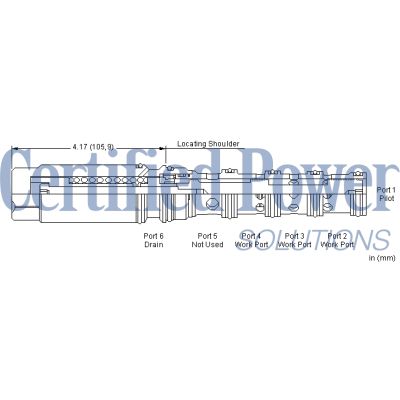

Two-position, 3-way directional cartridges are 6-port (port 5 is not used) directional valves that can be configured with up to 5 different spool configurations. The supply port is port 3 and all ports will accept 5000 psi (350 bar). Capacity for these pilot-to-shift valves is dependent on the spool type specified.
- Leakage listed in technical data is for each path.
- Pressure at port 6 directly opposes port 1.
- Hardened spool and sleeve provide consistent and low spool leakage rates and excellent wear characteristics.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-53A |
| Series | 3 |
| Capacity | 40 gpm160 L/min. |
| Minimum Pilot Pressure Required to Shift Valve | 160 psi11 bar |
| Pilot Pressure Required for Full Shift at Rated Flow | 290 psi20 bar |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.@1000 psi30 cc/min.@70 bar |
| Pilot Volume Displacement | .13 in³2,1 cc |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 2.90 lb1,30 kg |
| Seal kit - Cartridge | Viton: 990-053-006 |
