SUN HYDRAULICS
CXIBXCV
- SUN HYDRAULICS
- Material:CXIBXCV
- Model:CXIB-XCV
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXIBXCV (CXIBXCV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from inlet port 2 to outlet port 1, ensuring efficient operation by allowing free flow in one direction and blocking it in the opposite. The Delrin seat makes it particularly suitable for medium pressure systems that may contain some level of contamination but do not experience extreme temperatures or high flow conditions. The CXIBXCV check valve is engineered to fit into a T18A cavity and belongs to the Series 4 category, supporting up to 120 gpm (480 L/min) capacity and withstanding maximum operating pressures of up to 3000 psi (210 bar). It exhibits exceptionally low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), highlighting its effectiveness in maintaining system integrity. This model also features Sun\u2019s floating style construction that minimizes internal part binding due to installation torque or machining variations of the cavity/cartridge. With a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm), the CXIBXCV ensures a secure fit and easy installation. The valve weighs approximately 2.10 lb (0.95 kg), making it robust yet manageable for various applications. It also supports Viton seals, enhancing its durability and performance under varying conditions. Ideal for correcting existing circuits with incorrect manifold drillings, this check valve serves as a circuit saver by accommodating design variations without compromising on functionality or efficiency.
The Sun Hydraulics CXIBXCV (CXIBXCV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from inlet port 2 to outlet port 1, ensuring efficient operation by allowing free flow in one direction and blocking it in the opposite. The Delrin seat makes it particularly suitable for medium pressure systems that may contain some level of contamination but do not experience extreme temperatures or high flow conditions. The CXIBXCV check valve is engineered to fit into a T18A cavity and belongs to the Series 4 category, supporting up to 120 gpm (480 L/min) capacity and withstanding maximum operating pressures of up to 3000 psi (210 bar). It exhibits exceptionally low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), highlighting its effectiveness in maintaining system integrity. This model also features Sun\u2019s floating style construction that minimizes internal part binding due to installation torque or machining variations of the cavity/cartridge. With a valve hex size of 1-5/8 inches (41.3 mm) and an installation torque range between 350 \u2013 375 lbf\u00b7ft (474 \u2013 508 Nm), the CXIBXCV ensures a secure fit and easy installation. The valve weighs approximately 2.10 lb (0.95 kg), making it robust yet manageable for various applications. It also supports Viton seals, enhancing its durability and performance under varying conditions. Ideal for correcting existing circuits with incorrect manifold drillings, this check valve serves as a circuit saver by accommodating design variations without compromising on functionality or efficiency.

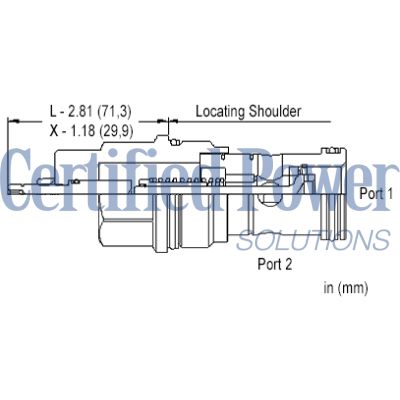

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 2.10 lb0,95 kg |
| Seal kit - Cartridge | Viton: 990-018-006 |
