SUN HYDRAULICS
CXHAXZN/LH
$105.50 USD
- SUN HYDRAULICS
- Material:CXHAXZN/LH
- Model:CXHA-XZN/LH
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXHAXZN/LH (CXHAXZN/LH) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is part of the T16A cavity series and supports a maximum operating pressure of 5000 psi (350 bar), with a flow capacity up to 80 gpm (320 L/min). It features a robust construction that allows free flow from the inlet port to the outlet port while blocking reverse flow, ensuring efficient operation and preventing potential system damage. The CXHAXZN/LH incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This design detail enhances the valve's longevity and reliability in demanding environments. The valve showcases extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), making it ideal for applications where fluid conservation is critical. Constructed to endure harsh conditions, this valve model uses EPDM seals specifically for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause deterioration. Additionally, the CXHAXZN/LH is available in corrosion-resistant configurations (indicated by suffix AP or LH), which are suitable for corrosive environments. The precise installation specifications include a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 \u2013 160 lbf\u00b7ft (203 \u2013 217 Nm), ensuring secure and straightforward integration into hydraulic circuits. Weighing at approximately 1.60 lb (0.70 kg), this model combines lightweight design with durable performance, making it an essential component for various hydraulic applications.
The Sun Hydraulics CXHAXZN/LH (CXHAXZN/LH) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is part of the T16A cavity series and supports a maximum operating pressure of 5000 psi (350 bar), with a flow capacity up to 80 gpm (320 L/min). It features a robust construction that allows free flow from the inlet port to the outlet port while blocking reverse flow, ensuring efficient operation and preventing potential system damage. The CXHAXZN/LH incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This design detail enhances the valve's longevity and reliability in demanding environments. The valve showcases extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), making it ideal for applications where fluid conservation is critical. Constructed to endure harsh conditions, this valve model uses EPDM seals specifically for systems utilizing phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause deterioration. Additionally, the CXHAXZN/LH is available in corrosion-resistant configurations (indicated by suffix AP or LH), which are suitable for corrosive environments. The precise installation specifications include a hex size of 1-1/4 inches (31.8 mm) and an installation torque between 150 \u2013 160 lbf\u00b7ft (203 \u2013 217 Nm), ensuring secure and straightforward integration into hydraulic circuits. Weighing at approximately 1.60 lb (0.70 kg), this model combines lightweight design with durable performance, making it an essential component for various hydraulic applications.

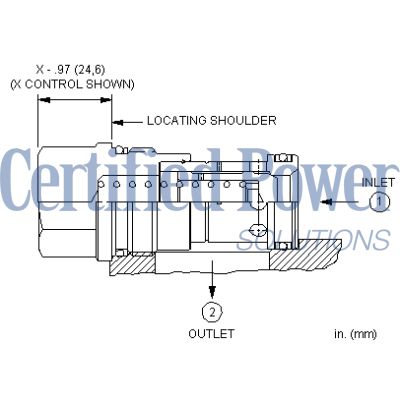

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm320 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
