SUN HYDRAULICS
CXFDXAN

  • SUN HYDRAULICS
  • Material:CXFDXAN
  • Model:CXFD-XAN
  • Summary:Cartridge

Due to extremely high demand, please call 888-905-7411 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFDXAN (CXFDXAN) is designed to be a crucial component in hydraulic systems, specifically tailored for use in hot oil shuttle assemblies. This model utilizes a unique configuration where two valves are positioned nose to nose with a pin in between, forming an effective low side shuttle. Engineered for high performance, the CXFDXAN operates with a capacity of 10 gpm (40 L/min), ensuring efficient fluid management in demanding applications. The valve is housed within a T3A cavity and belongs to the Series 2 line of Sun Hydraulics' products. It features a valve hex size of 1 1/8 inches (28.6 mm) and requires an installation torque between 45 - 50 lbf ft (61 - 68 Nm). For maintenance and longevity, the valve uses Viton seals, specifically the Viton: 990203006 seal kit, which provides excellent resistance against high temperatures and chemical degradation. This direct-acting valve configuration is chosen for its robustness, dirt tolerance, and stability, making it an ideal choice for systems requiring reliable overpressure prevention. Its design also allows for quick response times and straightforward integration into existing hydraulic circuits without the need for extensive modifications. The CXFDXAN is thus well-suited for applications involving complex hydraulic functions where precision and reliability are paramount.

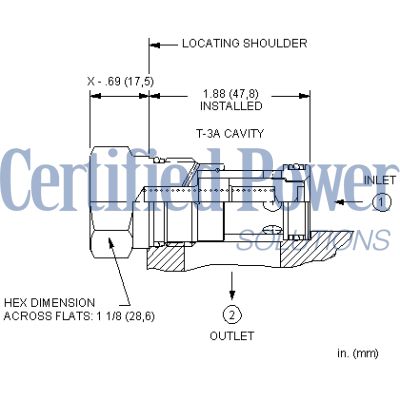

This valve was designed to be used in a parts-in-body, hot oil shuttle assembly. 2 valves, nose to nose, with a pin in between created the low side shuttle.


Cavity T-3A
Series 2
Capacity 10 gpm40 L/min.
Valve Hex Size 1 1/8 in.28,6 mm
Valve Installation Torque 45 - 50 lbf ft61 - 68 Nm
Seal kit - Cartridge Viton: 990-203-006
