SUN HYDRAULICS
CXDCXZV/LH
- SUN HYDRAULICS
- Material:CXDCXZV/LH
- Model:CXDC-XZV/LH
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXDCXZV/LH (CXDCXZV/LH) is a specialized hydraulic check valve designed for high-efficiency and reliability in various hydraulic systems. This model is particularly unique as it functions as a standard 2-port check valve but is housed within a 3-port cavity, with the third port being blocked off. This design makes it an ideal solution for applications requiring a check valve in existing three-port cavities, enhancing versatility without the need for additional modifications. The CXDCXZV/LH features Sun Hydraulics' floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue that can arise due to over-torquing during installation or from variations in cavity/cartridge machining. This construction ensures consistent operation and longevity of the valve under various conditions. With a capacity of 20 gpm (80 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is capable of handling substantial flow rates and pressures, making it suitable for demanding industrial applications. The valve also boasts an extremely low leakage rate, with less than one drop per minute (0.07 cc/min), ensuring efficient performance and minimal fluid loss. Additionally, the CXDCXZV/LH is designed for easy installation with a specific hex size of 7/8 in (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). The use of Viton seals further enhances its durability and compatibility with various hydraulic fluids, contributing to its robustness in harsh environments.
The Sun Hydraulics CXDCXZV/LH (CXDCXZV/LH) is a specialized hydraulic check valve designed for high-efficiency and reliability in various hydraulic systems. This model is particularly unique as it functions as a standard 2-port check valve but is housed within a 3-port cavity, with the third port being blocked off. This design makes it an ideal solution for applications requiring a check valve in existing three-port cavities, enhancing versatility without the need for additional modifications. The CXDCXZV/LH features Sun Hydraulics' floating style construction, which significantly reduces the risk of internal parts binding\u2014a common issue that can arise due to over-torquing during installation or from variations in cavity/cartridge machining. This construction ensures consistent operation and longevity of the valve under various conditions. With a capacity of 20 gpm (80 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is capable of handling substantial flow rates and pressures, making it suitable for demanding industrial applications. The valve also boasts an extremely low leakage rate, with less than one drop per minute (0.07 cc/min), ensuring efficient performance and minimal fluid loss. Additionally, the CXDCXZV/LH is designed for easy installation with a specific hex size of 7/8 in (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). The use of Viton seals further enhances its durability and compatibility with various hydraulic fluids, contributing to its robustness in harsh environments.

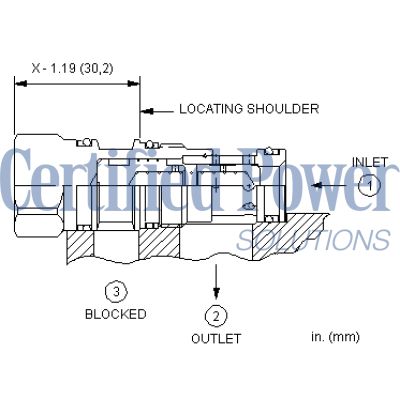

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
