SUN HYDRAULICS
CXCDXZV/AP
$137.30 USD
- SUN HYDRAULICS
- Material:CXCDXZV/AP
- Model:CXCD-XZV/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXZV/AP (CXCDXZV/AP) is a highly efficient and reliable hydraulic check valve designed for precise fluid control in various hydraulic systems. This model utilizes a freeflow, side-to-nose check valve mechanism that permits unrestricted flow from inlet port 2 to outlet port 1 while blocking reverse flow, ensuring optimal operation and preventing potential system damages. The CXCDXZV/AP is particularly useful in correcting existing circuit configurations where manifold drillings might be incorrect without needing extensive modifications. With a capacity of 15 gpm (60 L/min) and an ability to handle maximum operating pressures up to 5000 psi (350 bar), this valve is suited for high-pressure applications. It features extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), which contributes to its efficiency and minimal fluid loss, enhancing system integrity and performance longevity. The construction incorporates Sun's floating style design which minimizes internal part binding due to installation torque or machining variations of the cavity/cartridge. The physical characteristics include a hex size of 7/8 in. (22.2 mm) and an installation torque range between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The unit has a modest weight of .20 lb (0.10 kg), making it easy to handle and install. Additionally, the valve uses Viton seals for enhanced durability and performance under varied environmental conditions. Overall, the Sun Hydraulics CXCDXZV/AP check valve is a robust solution for maintaining directional control of fluid within hydraulic circuits, ideal for applications requiring precise flow management with minimal leakage.
The Sun Hydraulics CXCDXZV/AP (CXCDXZV/AP) is a highly efficient and reliable hydraulic check valve designed for precise fluid control in various hydraulic systems. This model utilizes a freeflow, side-to-nose check valve mechanism that permits unrestricted flow from inlet port 2 to outlet port 1 while blocking reverse flow, ensuring optimal operation and preventing potential system damages. The CXCDXZV/AP is particularly useful in correcting existing circuit configurations where manifold drillings might be incorrect without needing extensive modifications. With a capacity of 15 gpm (60 L/min) and an ability to handle maximum operating pressures up to 5000 psi (350 bar), this valve is suited for high-pressure applications. It features extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), which contributes to its efficiency and minimal fluid loss, enhancing system integrity and performance longevity. The construction incorporates Sun's floating style design which minimizes internal part binding due to installation torque or machining variations of the cavity/cartridge. The physical characteristics include a hex size of 7/8 in. (22.2 mm) and an installation torque range between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The unit has a modest weight of .20 lb (0.10 kg), making it easy to handle and install. Additionally, the valve uses Viton seals for enhanced durability and performance under varied environmental conditions. Overall, the Sun Hydraulics CXCDXZV/AP check valve is a robust solution for maintaining directional control of fluid within hydraulic circuits, ideal for applications requiring precise flow management with minimal leakage.

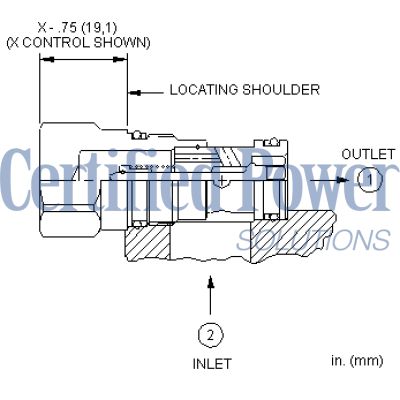

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
