SUN HYDRAULICS
CXCDXBN/AP
$128.80 USD
- SUN HYDRAULICS
- Material:CXCDXBN/AP
- Model:CXCD-XBN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXBN/AP (CXCDXBN/AP) is a high-performance hydraulic check valve designed for on-off circuit control, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This model is particularly beneficial in circuits where manifold drillings are incorrect, acting as a circuit saver by offering an alternative flow path. The valve's design incorporates Sun Hydraulics' floating style construction which helps minimize internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is robust enough for demanding applications. It features extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The CXCDXBN/AP is suitable for systems requiring precise fluid control with minimal leakage and high-pressure endurance. The physical specifications include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), it\u2019s lightweight yet durable, crafted to withstand rigorous use in various hydraulic applications. Moreover, it uses Viton seals for enhanced performance under varying conditions, ensuring reliability and longevity in diverse operational environments. This model\u2019s compatibility with standard T13A cavity series further enhances its adaptability in hydraulic systems.
The Sun Hydraulics CXCDXBN/AP (CXCDXBN/AP) is a high-performance hydraulic check valve designed for on-off circuit control, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This model is particularly beneficial in circuits where manifold drillings are incorrect, acting as a circuit saver by offering an alternative flow path. The valve's design incorporates Sun Hydraulics' floating style construction which helps minimize internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 15 gpm (60 L/min) and a maximum operating pressure of 5000 psi (350 bar), this valve is robust enough for demanding applications. It features extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The CXCDXBN/AP is suitable for systems requiring precise fluid control with minimal leakage and high-pressure endurance. The physical specifications include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), it\u2019s lightweight yet durable, crafted to withstand rigorous use in various hydraulic applications. Moreover, it uses Viton seals for enhanced performance under varying conditions, ensuring reliability and longevity in diverse operational environments. This model\u2019s compatibility with standard T13A cavity series further enhances its adaptability in hydraulic systems.

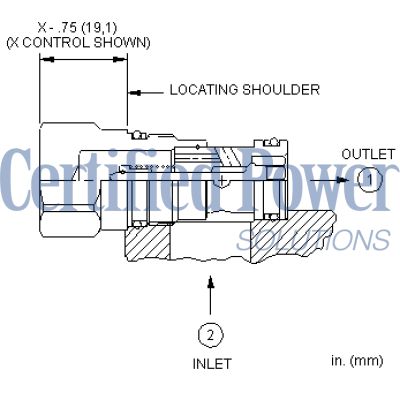

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
