SUN HYDRAULICS
CXCDXAN/AP
- SUN HYDRAULICS
- Material:CXCDXAN/AP
- Model:CXCD-XAN/AP
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXAN/AP (CXCDXAN/AP) is a precision-engineered check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where incorrect manifold drillings have occurred. It is particularly noted for its capacity being approximately 30% less than models with a nose-to-side flow path, which should be considered when planning system capacities. The CXCDXAN/AP operates under a maximum pressure of 5000 psi (350 bar) at both ports and maintains an extremely low leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation. Its design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. This model is housed in a T13A cavity, belongs to series 1, and supports up to 15 gpm (60 L/min) of fluid capacity. For installation, it requires a valve hex size of 7/8 inches (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The valve itself weighs about 0.20 lb (0.10 kg), making it lightweight yet robust enough for demanding applications. Additionally, the CXCDXAN/AP can be equipped with a Viton seal kit or cartridge as specified by part number 990010006, enhancing its adaptability and performance in various hydraulic setups. This check valve is ideal for use in applications where space and accuracy are critical, providing reliable performance and durability aligned with Sun Hydraulics' standards of manufacturing excellence.
The Sun Hydraulics CXCDXAN/AP (CXCDXAN/AP) is a precision-engineered check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where incorrect manifold drillings have occurred. It is particularly noted for its capacity being approximately 30% less than models with a nose-to-side flow path, which should be considered when planning system capacities. The CXCDXAN/AP operates under a maximum pressure of 5000 psi (350 bar) at both ports and maintains an extremely low leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation. Its design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue arising from excessive installation torque or variations in cavity/cartridge machining. This model is housed in a T13A cavity, belongs to series 1, and supports up to 15 gpm (60 L/min) of fluid capacity. For installation, it requires a valve hex size of 7/8 inches (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The valve itself weighs about 0.20 lb (0.10 kg), making it lightweight yet robust enough for demanding applications. Additionally, the CXCDXAN/AP can be equipped with a Viton seal kit or cartridge as specified by part number 990010006, enhancing its adaptability and performance in various hydraulic setups. This check valve is ideal for use in applications where space and accuracy are critical, providing reliable performance and durability aligned with Sun Hydraulics' standards of manufacturing excellence.

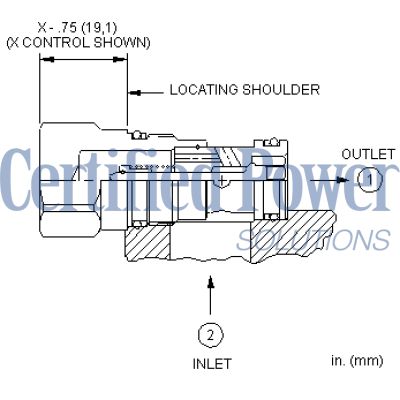

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
