CSABXXN/AP
- SUN HYDRAULICS
- Material:CSABXXN/AP
- Model:CSAB-XXN/AP
- Summary:Cartridge
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSABXXN/AP (CSABXXN/AP) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal control between two work ports and a common or signal port. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher of two pressure signals to the output, allowing for precise control and decay of the pressure signal when necessary. The valve operates efficiently with a maximum capacity of 2.5 gpm (10 L/min) and can withstand pressures up to 5000 psi (350 bar). Constructed with durability in mind, the CSABXXN/AP features hardened steel balls and seats that enhance wear characteristics and offer substantial contamination tolerance. This robust construction ensures long-term reliability even in demanding applications. The valve also incorporates Sun\u2019s unique floating style construction which helps prevent internal parts from binding due to variations in installation torque or machining errors. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they could compromise the integrity of the seals. Maintenance and replacement are straightforward, thanks to easily accessible seal kits specified for this model. Overall, the Sun Hydraulics CSABXXN/AP shuttle valve is an essential component for hydraulic systems where accurate pressure balancing between channels is critical. Its advanced design and material choices make it a dependable choice for ensuring stable system operations under varying pressures and conditions.
The Sun Hydraulics CSABXXN/AP (CSABXXN/AP) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal control between two work ports and a common or signal port. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher of two pressure signals to the output, allowing for precise control and decay of the pressure signal when necessary. The valve operates efficiently with a maximum capacity of 2.5 gpm (10 L/min) and can withstand pressures up to 5000 psi (350 bar). Constructed with durability in mind, the CSABXXN/AP features hardened steel balls and seats that enhance wear characteristics and offer substantial contamination tolerance. This robust construction ensures long-term reliability even in demanding applications. The valve also incorporates Sun\u2019s unique floating style construction which helps prevent internal parts from binding due to variations in installation torque or machining errors. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they could compromise the integrity of the seals. Maintenance and replacement are straightforward, thanks to easily accessible seal kits specified for this model. Overall, the Sun Hydraulics CSABXXN/AP shuttle valve is an essential component for hydraulic systems where accurate pressure balancing between channels is critical. Its advanced design and material choices make it a dependable choice for ensuring stable system operations under varying pressures and conditions.

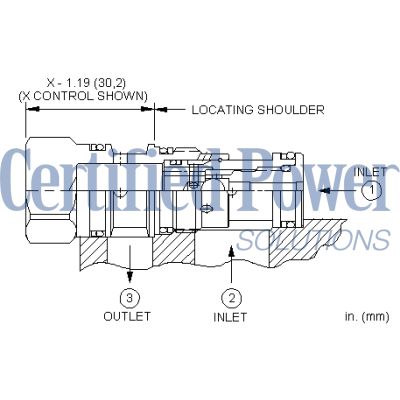

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 3.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
