SUN HYDRAULICS
CNIDXDN/AP
$332.90 USD
- SUN HYDRAULICS
- Material:CNIDXDN/AP
- Model:CNID-XDN/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNIDXDN/AP (CNIDXDN/AP) is a specialized hydraulic valve designed for efficient operation in complex hydraulic systems. This model is a sidetonose cheater check valve with a bypass orifice, which uniquely functions as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice, with port 3 being blocked off. This valve is particularly useful in full-time regeneration circuits, allowing for the full force development by the cylinder upon stopping. The bypass orifice feature crucially drops the rod end pressure to zero when there is no flow out of the rod, enhancing system efficiency and safety. The CNIDXDN/AP model incorporates Sun\u2019s floating style construction which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Key specifications of this model include a capacity of up to 120 gpm/480 L/min, and it can handle maximum operating pressures up to 5000 psi/350 bar. The orifice range for this model spans from .016 to .218 inches (0.4 to 5.5 mm), ensuring versatility across different applications. The valve itself has a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque of between 350 - 375 lbf.ft (474 - 508 Nm). It weighs approximately 1.90 lbs (0.85 kg), making it robust yet manageable in size for installation and maintenance processes.
The Sun Hydraulics CNIDXDN/AP (CNIDXDN/AP) is a specialized hydraulic valve designed for efficient operation in complex hydraulic systems. This model is a sidetonose cheater check valve with a bypass orifice, which uniquely functions as a 2-port check valve within a 3-port cavity configuration. It facilitates free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice, with port 3 being blocked off. This valve is particularly useful in full-time regeneration circuits, allowing for the full force development by the cylinder upon stopping. The bypass orifice feature crucially drops the rod end pressure to zero when there is no flow out of the rod, enhancing system efficiency and safety. The CNIDXDN/AP model incorporates Sun\u2019s floating style construction which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Key specifications of this model include a capacity of up to 120 gpm/480 L/min, and it can handle maximum operating pressures up to 5000 psi/350 bar. The orifice range for this model spans from .016 to .218 inches (0.4 to 5.5 mm), ensuring versatility across different applications. The valve itself has a hex size of 1-5/8 inches (41.3 mm) and requires an installation torque of between 350 - 375 lbf.ft (474 - 508 Nm). It weighs approximately 1.90 lbs (0.85 kg), making it robust yet manageable in size for installation and maintenance processes.

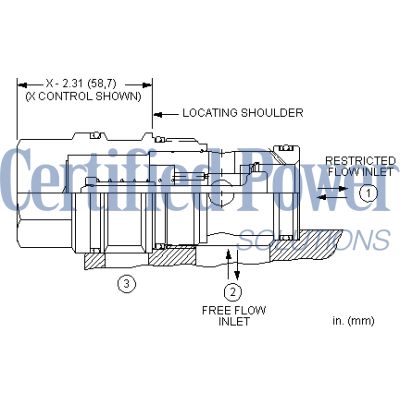

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-19A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Model Weight | 1.90 lb0,85 kg |
| Seal kit - Cartridge | Viton: 990-019-006 |
