SUN HYDRAULICS
CNGDXBN
$116.28 USD
- SUN HYDRAULICS
- Material:CNGDXBN
- Model:CNGD-XBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXBN (CNGDXBN) is a highly specialized hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This valve features a unique freeflow, side-to-nose cheater check configuration with a bypass orifice. It operates as a 2-port check valve within a 3-port cavity, allowing free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice. Port 3 in the cartridge is purposely blocked off to suit specific circuit requirements. The CNGDXBN valve is particularly useful in full-time regeneration circuits, helping develop full force in cylinders upon stopping by dropping rod end pressure to zero when the flow ceases. This capability makes it an essential component in various hydraulic applications where precise motion control is critical. Constructed with corrosion-resistant materials, this valve ensures durability and long-term performance even in harsh environments. It incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve supports a maximum operating pressure of 5000 psi (350 bar) and has a capacity of up to 60 gpm (240 L/min), with an orifice range from .016 to .218 inches (0.4 to 5.5 mm). Installation requires specific torque settings between 150 and 160 lbf\u00b7ft (203 - 217 Nm), and the model weighs approximately 1.10 lbs (0.50 kg). For maintenance, a Viton seal kit (990017006) is recommended to ensure optimal performance and longevity of the valve system.
The Sun Hydraulics CNGDXBN (CNGDXBN) is a highly specialized hydraulic valve designed for specific applications requiring controlled flow and pressure management in hydraulic systems. This valve features a unique freeflow, side-to-nose cheater check configuration with a bypass orifice. It operates as a 2-port check valve within a 3-port cavity, allowing free flow from port 2 to port 1 while controlling the flow from port 1 to port 2 through a customer-specified orifice. Port 3 in the cartridge is purposely blocked off to suit specific circuit requirements. The CNGDXBN valve is particularly useful in full-time regeneration circuits, helping develop full force in cylinders upon stopping by dropping rod end pressure to zero when the flow ceases. This capability makes it an essential component in various hydraulic applications where precise motion control is critical. Constructed with corrosion-resistant materials, this valve ensures durability and long-term performance even in harsh environments. It incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The valve supports a maximum operating pressure of 5000 psi (350 bar) and has a capacity of up to 60 gpm (240 L/min), with an orifice range from .016 to .218 inches (0.4 to 5.5 mm). Installation requires specific torque settings between 150 and 160 lbf\u00b7ft (203 - 217 Nm), and the model weighs approximately 1.10 lbs (0.50 kg). For maintenance, a Viton seal kit (990017006) is recommended to ensure optimal performance and longevity of the valve system.

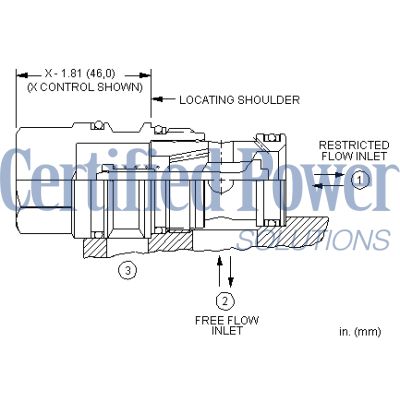

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
