HYDRAFORCE
5623503

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

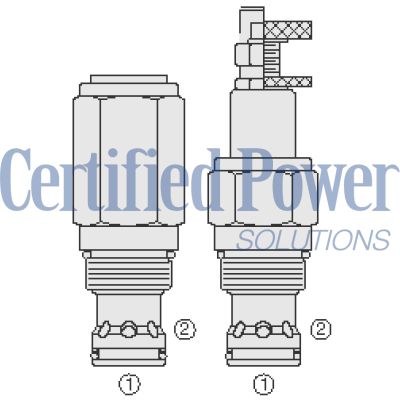

The Hydraforce RV16-26A-0-N-35 (Material Number: 5623503) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits requiring fast response and low hysteresis. This valve operates by blocking flow from port 1 to port 2 until sufficient pressure at port 1 forces the piloting relief off its seat, allowing the main spool to shift and open port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. The RV16-26A-0-N-35 has a pressure rating of up to 275.8 bar (4000 psi), proof pressure of 620.5 bar (9000 psi), and burst pressure of 1275.5 bar (18500 psi). It features a crack pressure defined at a flow of 7.6 lpm (2 gpm) with a reseat pressure nominally at 90% of the crack value. The relief pressure range extends from 27.6 to 344.7 bar (140 to 3500 psi) depending on control current. The flow rating for this valve is up to 302.8 lpm (80 gpm) at maximum pressure, with maximum internal leakage specifications varying based on the set pressure: up to 114.7 ml/min below and up to 491.6 ml/min above a setting of 137.9 bar (2000 psi). It accommodates operating fluid temperatures ranging from -40\u00b0C to +100\u00b0C with buna N seals, -26\u00b0C to +204\u00b0C with fluorocarbon seals, and -54\u00b0C to +107\u00b0C with polyurethane seals, making it versatile for various environmental conditions. Installation specifications include compatibility with VC16-2 cavities and require cartridge installation torque between 62.7 and 73.4 N-m, along with an H style plug torque of 33.9 N-m if applicable. The unit weight varies slightly depending on configuration options provided by the manufacturer\u2019s cataloging system.
