HYDRAFORCE
5621300V
$110.00 USD
- HYDRAFORCE
- Material:5621300V
- Model:UP10-40A-0-V-70-30/ CARTRIDGE
- Summary:PRESSURE UNLOADING VALVE
Quantity in stock: 0

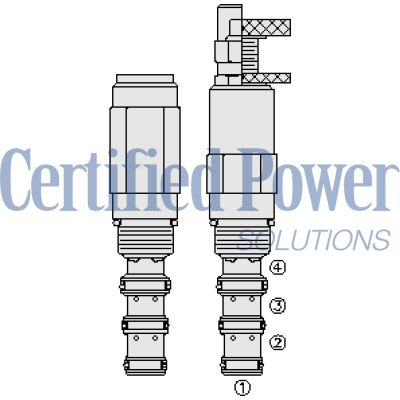

The Hydraforce 5621300V (5621300V) is a screw-in, cartridge-style remote sequence pilot unloading valve designed for use in accumulator-type hydraulic systems. Known as the UP10-40X, this valve offers optional fixed unload/reload pressure ratios of 60%, 70%, or 80%, making it versatile for various applications requiring precise control of hydraulic pressure. In its default state, the UP10-40X blocks flow from port 2 to port 3 until a predetermined pressure is achieved at port 1. Upon reaching this pressure, the spool shifts to permit flow between these ports while venting the spring chamber to port 4. Should the pressure at port 1 fall below the established reload value, the valve automatically closes to block flow once again. Notable features include adjustments that cannot be backed out of the valve and mechanisms that prevent springs from going solid, ensuring reliable operation over time. The hardened precision spool and cage contribute to its durability and long service life, while its industry-common size facilitates compatibility with existing systems.
Unit weight:
0.27 kg (0.64 lb)
A
0.29 kg (0.69 lb)
B
0.31 kg (0.74 lb)
C l
0.26 kg (0.62 lb)
F h
Internal wetted surface area:
207 cm² (32.1 in²)
A b c l
216 cm² (33.5 in²)
F h

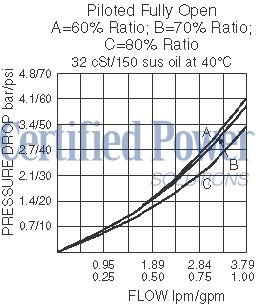

| Ratings | Pressure Ratings Pressure rating: 206.8 bar (3000 psi) Port 1, port 2, port 3 68.9 bar (1000 psi) Port 4 Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Pressure setting: 68.9 to 206.8 bar (1000 to 3000 psi) Loading and unloading pressure ratio: At 3.8 lpm (1 gpm) 206.8 bar (3000 psi) Flow Ratings Flow rating: 3.8 lpm (1 gpm) Maximum internal leakage: 0.1 ml/min (2 drops/min) From port 1 to 2 at max pressure Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: UP10-40X gup10-40x type iii clear zinc plating 960 hr salt spray per ASTM b633 per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

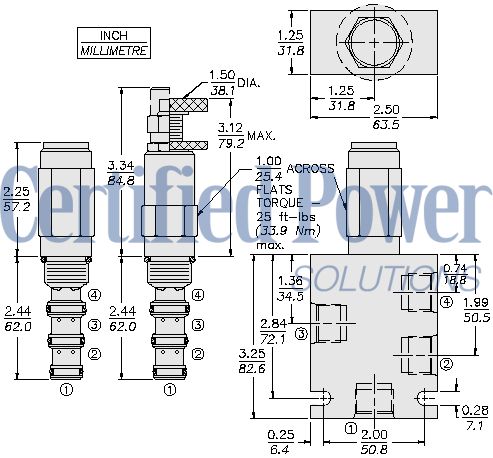

VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION UP10-40F-H-J-NR/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane N Ratio N 60 60% Ratio N 70 70% Ratio N 80 80% Ratio R Spring R 30 68.9 to 206.8 bar (1000 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-4X-BBM
X=seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
