Material:5620106V

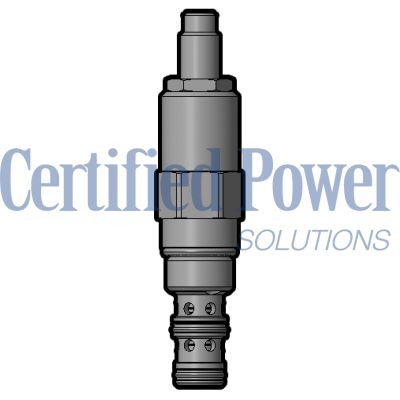

Model:PS10-36B-0-V-30/ SEQUENCE VALVE
Summary:SEQUENCE VALVE, PILOT OPERATED U.S. PATENT # 7,137,406

Quantity in stock: 0

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5620106V (5620106V) is a screw-in, cartridge style, pilot operated, spool type hydraulic sequence valve designed for versatile hydraulic applications. Known for its robust construction, the PS10-36X model effectively manages fluid flow by blocking it from port 1 to port 2 in its steady state while maintaining a drained spring chamber at port 3. Once the pressure at port 1 reaches a predetermined level, the valve shifts to allow flow from port 1 to port 2, and it remains in this position until circuit pressure falls below the set threshold. A notable feature of this valve is that back pressure on port 3 contributes to the spring setting value. The valve is engineered with hardened spool and cage components to ensure long-lasting performance and durability. Additionally, it offers optional spring ranges up to 144.8 bar (2100 psi) and includes safeguards against backing out adjustments or solidifying springs. The PS10-36X's industry-common size makes it suitable for integration into various hydraulic systems requiring reliable sequence control under variable pressures.

Unit weight: 0.259 kg (0.57 lb)
PS10-36A
0.281 kg (0.62 lb)
PS10-36B
0.299 kg (0.66 lb)
PS10-36C PS10-36L
0.249 kg (0.55 lb)
PS10-36F
0.245 kg (0.54 lb)
PS10-36H

Internal wetted surface area: 161 cm² (25 in²)
PS10-36A PS10-36B PS10-36C PS10-36L
181 cm² (28 in²)
PS10-36F PS10-36H

Pressure change per adjuster turn: 3.8 bar (54.54 psi)
A Adaptor Code 04
16.0 bar (231.63 psi)
A Adaptor Code 15
27.8 bar (402.72 psi)
A Adaptor Code 30
47.3 bar (685.41 psi)
A Adaptor Code 50
4.7 bar (68.17 psi)
H adaptor Code 04
20.0 bar (289.54 psi)
H adaptor Code 15
34.7 bar (503.40 psi)
H adaptor Code 30
59.1 bar (856.77 psi)
H adaptor Code 50

Ratings	Pressure Ratings Pressure rating: 344.7 bar (5000 psi) At port 1 241.3 bar (3500 psi) At port 2 68.9 bar (1000 psi) At port 3 Proof pressure: 482.6 bar (7000 psi) At port 1 482.6 bar (7000 psi) At port 2 103.4 bar (1500 psi) At port 3 Burst pressure: 1034 bar (15000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Flow Ratings Flow rating: 56.8 lpm (15 gpm) Maximum internal leakage: 82 ml/min (5 in³/min) At port 3, to 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: PS10-36X - Type III clear zinc plating per astm B633, GPS10-36X - 960 hour salt spray per ASTM B117
Operating Parameters	Fluids: Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406
Performance
Installation Specifications	Cavity: VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H style plug torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Orientation restriction: None
Order Code	POSITION CODE DESCRIPTION PS10-36F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 4.1 to 27.6 bar (60 to 400 psi) Spring Range R 15 16.5 to 103.4 bar (240 to 1500 psi) Spring Range R 30 31.7 to 206.9 bar (460 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100)
