  • Model:PS10-36A-0-V-04/ SEQUENCE VALVE
  • Summary:SEQUENCE VALVE, PILOT OPERATED U.S. PATENT # 7,137,406

Quantity in stock: 0

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

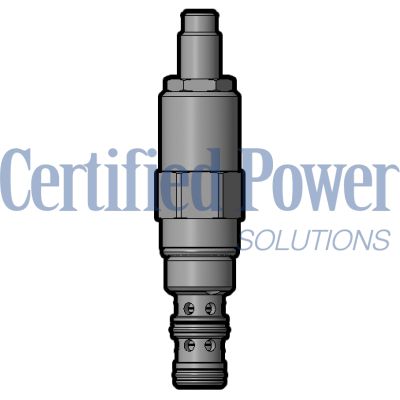

The Hydraforce 5620001 (5620001) is a screw-in, cartridge style, pilot operated, spool type hydraulic sequence valve designed for efficient flow control in hydraulic systems. This model features an internal pilot and external spring chamber drain, ensuring reliable performance under varying pressure conditions. In its default state, the PS10-36X blocks flow from port 1 to port 2 while allowing the spring chamber to drain at port 3. When the pressure at port 1 reaches a predetermined level, the valve shifts to permit flow from port 1 to port 2 and remains in this position until circuit pressure drops below the set threshold. It is important to note that any back pressure present at port 3 will influence the spring setting value, potentially altering performance parameters. The design of this valve includes several notable features that contribute to its durability and functionality. The adjustments on the valve are engineered to prevent them from being backed out, which ensures consistent operation and prevents damage caused by overextension of internal springs. Additionally, there are optional spring ranges available up to 144.8 bar (2100 psi), providing flexibility for various applications. The hardened spool and cage construction enhances longevity and resilience against wear and tear, making it suitable for demanding environments. With its industry-common size, the Hydraforce PS10-36X offers compatibility with a wide range of hydraulic systems, making it a versatile choice for professionals seeking reliable sequence valve solutions.

Unit weight: 0.259 kg (0.57 lb)
PS10-36A
0.281 kg (0.62 lb)
PS10-36B
0.299 kg (0.66 lb)
PS10-36C PS10-36L
0.249 kg (0.55 lb)
PS10-36F
0.245 kg (0.54 lb)
PS10-36H

Internal wetted surface area: 161 cm² (25 in²)
PS10-36A PS10-36B PS10-36C PS10-36L
181 cm² (28 in²)
PS10-36F PS10-36H

Pressure change per adjuster turn: 3.8 bar (54.54 psi)
A Adaptor Code 04
16.0 bar (231.63 psi)
A Adaptor Code 15
27.8 bar (402.72 psi)
A Adaptor Code 30
47.3 bar (685.41 psi)
A Adaptor Code 50
4.7 bar (68.17 psi)
H adaptor Code 04
20.0 bar (289.54 psi)
H adaptor Code 15
34.7 bar (503.40 psi)
H adaptor Code 30
59.1 bar (856.77 psi)
H adaptor Code 50

RatingsPressure Ratings
Pressure rating: 344.7 bar (5000 psi)
At port 1
241.3 bar (3500 psi)
At port 2
68.9 bar (1000 psi)
At port 3

Proof pressure: 482.6 bar (7000 psi)
At port 1
482.6 bar (7000 psi)
At port 2
103.4 bar (1500 psi)
At port 3

Burst pressure: 1034 bar (15000 psi)

Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port
                                                                        2

Flow Ratings
Flow rating: 56.8 lpm (15 gpm)

Maximum internal leakage: 82 ml/min (5 in³/min)
At port 3, to 85% of nominal setting

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)
With Buna N seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane and urethane seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 70 °C (-40 to 160 °F)

Other Ratings
Corrosion protection: PS10-36X - Type III clear zinc plating per astm B633, GPS10-36X - 960 hour salt spray per ASTM B117
Operating ParametersFluids: Mineral based or synthetic with lubricating properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 18/16/13 per ISO 4406
Performancehttps://www.hydraforce.com/globalassets/product-images/ps10-36_perf12022-02-24.gif
https://www.hydraforce.com/globalassets/product-images/ps10-36_perf22022-02-24.gif

Installation SpecificationsCavity: VC10-3
10-size-3-way Cavities
Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb)

H style plug torque: 32.5 to 35.3 N-m (24 to 26 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION PS10-36F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 4.1 to 27.6 bar (60 to 400 psi) Spring Range R 15 16.5 to 103.4 bar (240 to 1500 psi) Spring Range R 30 31.7 to 206.9 bar (460 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100)
https://www.hydraforce.com/globalassets/product-images/ps10-36_dim2022-02-24.gif


Seal kit: SK10-3X-BM
X=seal options
Seal kit installation instructions
Housings:
Available
                                                                        10-3w valve bodies
