Hydraforce-5617502-5617502

HYDRAFORCE
5617502


$131.50 USD
  • HYDRAFORCE
  • Material:5617502
  • Model:KS10-30A-0-N-15A/ CARTRIDGE
  • Summary:KICK DOWN SEQUENCE VALVE

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

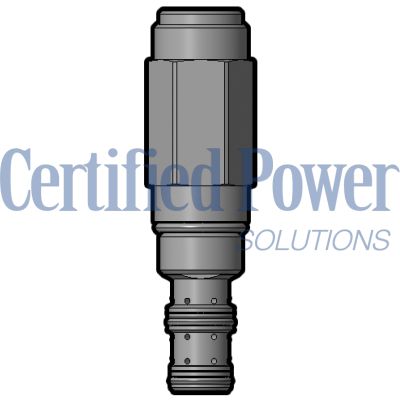

The Hydraforce 5617502 (5617502) is a direct acting spool type hydraulic sequence valve, engineered with an internal pilot and spring chamber drain. This valve is specifically designed to redirect flow to a secondary circuit once a specified pressure level is reached in the primary circuit. It will maintain its shifted position until the pressure in the secondary circuit drops below the set secondary pressure threshold. Key features of this valve include non-backout adjustments that prevent springs from becoming solid, ensuring reliable operation and durability. It offers optional spring ranges up to 144.8 bar (2100 psi) and incorporates a hardened spool and cage for extended service life. The product is crafted in an industry-common size, making it versatile for various applications where hydraulic sequence control is required.

Unit weight: 0.26 kg (0.58 lb)
KS10-30A
0.29 kg (0.63 lb)
KS10-30B
0.31 kg (0.68 lb)
KS10-30C, KS10-30L
0.25 kg (0.56 lb)
KS10-30F, KS10-30H

RatingsPressure Ratings
Operating pressure: 207 bar (3000 psi)
Ports 1, 2

Crack pressure defined: Evident at port 1 when 0.95 lpm (0.25 gpm) attained at port 1 to port 2

Temperature Ratings
Operating fluid temperature: -40 to 121 °C (-40 to 250 °F)
With Buna N seals
-35 to 204 °C (-31 to 400 °F)
With Viton seals
Performancehttps://www.hydraforce.com/globalassets/product-images/ks10-30_perf2022-02-24.gif

Installation SpecificationsCavity: VC10-3
10-size-3-way Cavities
Cartridge installation torque: 27.1 to 32.5 N-m (20 to 24 ft-lb)

H style plug torque: 33.9 N-m (25 ft-lb)
Order CodePOSITION CODE DESCRIPTION KS10-30F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04A 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 04B 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 04C 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 04D 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 15A 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 15B 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 15C 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 15D 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 30A 24.1 to 206.8 bar (350 to 3000 psi) Spring Range R 30B 24.1 to 206.8 bar (350 to 3000 psi) Spring Range R 30C 24.1 to 206.8 bar (350 to 3000 psi) Spring Range R 30D 24.1 to 206.8 bar (350 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100)
https://www.hydraforce.com/globalassets/product-images/ks10-30_dim2022-02-24.gif


Seal kit: SK10-3N-BB
Buna N
SK10-3V-BB
Viton
Seal kit
                                                                        installation instructions
Housings:
Available
                                                                        10-3w valve bodies

Product PDF File Download Product PDF File
