- Material:5616000V
- Model:PR10-32A-0-V-01/ REDUCING VALVE
- Summary:PRESSURE REDUCING / RELIEVING CARTRIDGE VALVE
Quantity in stock: 0

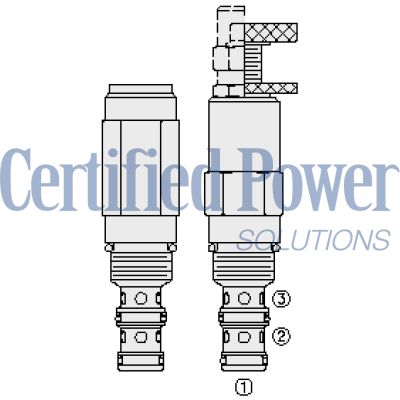

The Hydraforce 5616000V (5616000V) is a screw-in, cartridge-style hydraulic pressure reducing/relieving valve, specifically the PR10-32X model. This direct-acting spool-type valve is designed to regulate pressure in secondary circuits with stable input flow. In its normal state, it allows bidirectional flow from port 2 to port 1 while keeping the spring chamber drained at port 3. Once a pre-determined pressure level is reached at port 1, the valve shifts to block flow from port 2, effectively regulating the pressure at port 1. Additionally, it can relieve excess pressure from port 1 to port 3 over the set reducing pressure. The PR10-32X features adjustments that cannot be backed out of the valve and prohibits springs from going solid, ensuring durability and reliability. It offers optional spring ranges up to 145 bar (2100 psi) and includes a hardened spool and cage for extended life. Its industry-common size makes it versatile for various applications where precise pressure regulation is critical.
Unit weight:
0.25 kg (0.56 lb)
PR10-32A
0.29 kg (0.65 lb)
Pr10-32c/l
0.28 kg (0.61 lb)
PR10-32B
0.24 kg (0.54 lb)
Pr10-32f/h
Internal wetted surface area:
148 cm² (22.9 in²)
Pr10-32a/b/c/l
163 cm² (25.2 in²)
Pr10-32f/h
| Ratings | Pressure Ratings Pressure rating: 206.8 bar (3000 psi) Port 1 206.8 bar (3000 psi) Port 2 68.9 bar (1000 psi) Port 3 Proof pressure: 517.1 bar (7500 psi) Port 1 517.1 bar (7500 psi) Port 2 103.4 bar (1500 psi) Port 3 Burst pressure: 1034 bar (15000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Flow Ratings Flow rating: 30.3 lpm (8 gpm) Maximum internal leakage: 82 ml/min (5 in³/min) Port 2 to 3 at 206.8 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PR10-32F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 01 2.4 to 8.6 bar (35 to 125 psi) Spring Range R 04 5.5 to 27.6 bar (80 to 400 psi) Spring Range R 08 13.8 to 55.2 bar (200 to 800 psi) Spring Range R 15 20.7 to 103.4 bar (300 to 1500 psi) Spring Range R 21 27.6 to 144.8 bar (400 to 2100 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
