HYDRAFORCE
5615102
$72.25 USD
- HYDRAFORCE
- Material:5615102
- Model:PR10-36B-0-N-30/ REDUCING VALVE
- Summary:PRESSURE REDUCING/ RELIEVING CARTRIDGE VALVE U.S. PATENT # 7,137,406
Quantity in stock: 18
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

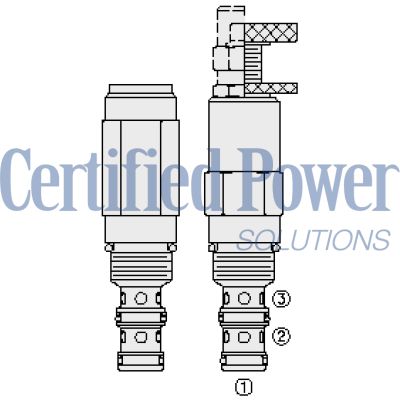

The Hydraforce PR10-36B-0-N-30 (5615102) is a spool type, pilot-operated hydraulic pressure reducing/relieving valve designed for secondary circuit pressure regulation. This valve features an internal pilot and spring chamber drain, allowing for bidirectional flow from port 2 to port 1 in its steady state, while maintaining constant drainage at port 3. When the predetermined pressure is reached at port 1, the spool shifts to restrict inlet flow from port 2, regulating the pressure effectively. Additionally, it can relieve pressure from port 1 to port 3. The PR10-36B-0-N-30 includes hardened spool and cage components for extended durability and offers optional spring ranges up to 207 bar (3000 psi). The valve has a maximum flow rating of 56.8 lpm (15 gpm) and supports a maximum pilot flow of 0.170 lpm (0.045 gpm) under specific conditions. Pressure ratings include 241.3 bar (3500 psi) for ports 1 and 2, with a lower rating of 68.9 bar (1000 psi) for port 3. It can withstand proof pressures up to 517.1 bar (7500 psi) and burst pressures up to 1034 bar (15000 psi). Suitable for various operating fluid temperatures depending on seal type, it accommodates mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The valve's installation requires VC10-3 cavities with specific torque specifications for cartridge installation and H style plug torque requirements. The unit weighs between 0.25 kg and 0.30 kg depending on configuration, with an internal wetted surface area ranging from approximately 165 cm\u00b2 to 179 cm\u00b2 based on model specifics. An available seal kit SK10-3X-BM facilitates maintenance with options tailored to different sealing needs.
The Hydraforce PR10-36B-0-N-30 (5615102) is a spool type, pilot-operated hydraulic pressure reducing/relieving valve designed for secondary circuit pressure regulation. This valve features an internal pilot and spring chamber drain, allowing for bidirectional flow from port 2 to port 1 in its steady state, while maintaining constant drainage at port 3. When the predetermined pressure is reached at port 1, the spool shifts to restrict inlet flow from port 2, regulating the pressure effectively. Additionally, it can relieve pressure from port 1 to port 3. The PR10-36B-0-N-30 includes hardened spool and cage components for extended durability and offers optional spring ranges up to 207 bar (3000 psi). The valve has a maximum flow rating of 56.8 lpm (15 gpm) and supports a maximum pilot flow of 0.170 lpm (0.045 gpm) under specific conditions. Pressure ratings include 241.3 bar (3500 psi) for ports 1 and 2, with a lower rating of 68.9 bar (1000 psi) for port 3. It can withstand proof pressures up to 517.1 bar (7500 psi) and burst pressures up to 1034 bar (15000 psi). Suitable for various operating fluid temperatures depending on seal type, it accommodates mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. The valve's installation requires VC10-3 cavities with specific torque specifications for cartridge installation and H style plug torque requirements. The unit weighs between 0.25 kg and 0.30 kg depending on configuration, with an internal wetted surface area ranging from approximately 165 cm\u00b2 to 179 cm\u00b2 based on model specifics. An available seal kit SK10-3X-BM facilitates maintenance with options tailored to different sealing needs.
Unit weight:
0.26 kg (0.57 lb)
A
0.28 kg (0.62 lb)
B
0.30 kg (0.67 lb)
C l
0.25 kg (0.55 lb)
F h
Internal wetted surface area:
165 cm² (25.5 in²)
A b c l
179 cm² (25.7 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 241.3 bar (3500 psi) Port 2 68.9 bar (1000 psi) Port 3 Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: 56.8 lpm (15 gpm) Maximum pilot flow: 0.170 lpm (0.045 gpm) With maximum adjustment setting and with inlet pressure of 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-54 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 (tank pressure is additive to regulated pressure) |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) 67.8 N-m (50 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PR10-36FG-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes G Screen G BLANK NONE G S 60 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 30 27.6 to 206.8 bar (400 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X=seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
