HYDRAFORCE
5615014
$72.25 USD
- HYDRAFORCE
- Material:5615014
- Model:PR10-36L-0-N-30/ REDUCING VALVE
- Summary:PRESSURE REDUCING/ RELIEVING CARTRIDGE VALVE U.S. PATENT # 7,137,406
Quantity in stock: 0

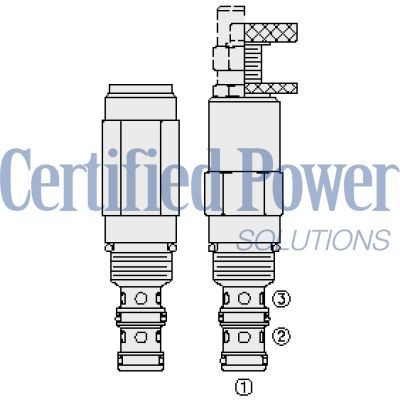

The Hydraforce 5615014 (5615014) is a spool type, pilot operated, hydraulic pressure reducing/relieving valve designed for secondary circuit pressure regulation. This valve features an internal pilot and internal spring chamber drain, allowing flow to pass bidirectionally from port 2 to port 1 in its steady state. The spring chamber is continuously drained at port 3. When a predetermined pressure is reached at port 1, the spool shifts to restrict inlet flow from port 2, thereby regulating the pressure at port 1. Additionally, the valve can relieve pressure from port 1 to port 3. Notably, adjustments on this valve cannot be backed out, preventing springs from going solid, and it offers optional spring ranges up to 207 bar (3000 psi). The construction includes a hardened spool and cage for extended durability and fits an industry-common size. Port 2 may also be protected by a 60 mesh, 250-micron rated screen with option S for added reliability.
Unit weight:
0.26 kg (0.57 lb)
A
0.28 kg (0.62 lb)
B
0.30 kg (0.67 lb)
C l
0.25 kg (0.55 lb)
F h
Internal wetted surface area:
165 cm² (25.5 in²)
A b c l
179 cm² (25.7 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 241.3 bar (3500 psi) Port 2 68.9 bar (1000 psi) Port 3 Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: 56.8 lpm (15 gpm) Maximum pilot flow: 0.170 lpm (0.045 gpm) With maximum adjustment setting and with inlet pressure of 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-54 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 (tank pressure is additive to regulated pressure) |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) 67.8 N-m (50 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PR10-36FG-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes G Screen G BLANK NONE G S 60 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 10.3 to 103.4 bar (150 to 1500 psi) Spring Range R 30 27.6 to 206.8 bar (400 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X=seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
