- Material:5614917
- Model:PR50-38H-0-N-33/ REDUCING VALVE
- Summary:PRESSURE REDUCING/RELIEVING CARTRIDGE VALVE
Quantity in stock: 0

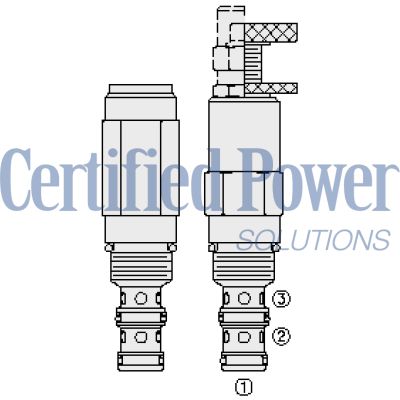

The Hydraforce 5614917 (5614917) is a screw-in, cartridge-style, direct-acting spool type hydraulic pressure reducing/relieving valve designed for secondary circuit pressure regulation. This valve features an internal spring chamber drain and a spool damping chamber to enhance performance and reliability. Engineered to allow bidirectional flow from port 2 to port 1 in its steady state, the PR50-38XXX model shifts upon reaching a predetermined pressure at port 1 to block flow at port 2, effectively regulating the pressure at port 1. Additionally, it can relieve pressure from port 1 to port 3 at a variable value over the set reducing pressure. The valve is built with hardened spool and cage components for extended durability and includes optional spring ranges up to 227.5 bar (3300 psi). Adjustments cannot be backed out of the valve, ensuring that springs do not go solid during operation. Port 2 can be protected by an optional 60 mesh, 250-micron rated screen if needed. This industry-common size valve is suitable for applications requiring precise pressure control in hydraulic systems.
Unit weight:
0.27 kg (0.59 lb)
A
0.29 kg (0.64 lb)
B
0.31 kg (0.69 lb)
C l
0.26 kg (0.57 lb)
F h
Internal wetted surface area:
215 cm² (33.3 in²)
A b c l
195 cm² (30.2 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) Ports 1 and 2 68.9 bar (1000 psi) Port 3 Proof pressure: 482.6 bar (7000 psi) Port 1 482.6 bar (7000 psi) Port 2 68.9 bar (1000 psi) Port 3 Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: See performance graphs Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: PR50-38XX 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 (tank port pressure is additive to pressure setting at ratio of 1:1) |
| Performance |   |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 33.9 to 36.6 N-m (25 to 27 ft-lb) 67.8 N-m (50 ft-lb) Maximum H style plug torque: 10.8 to 13.6 N-m (8 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION PR50-38DFG-H-J-R/S D Rapid Response Option D BLANK Standard D R Rapid Response F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes G Screen G BLANK NONE G S 60 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 05 10.3 to 37.9 bar (150 to 550 psi) Spring Range R 15 6.9 to 103.4 bar (100 to 1500 psi) Spring Range R 21 27.6 to 144.8 bar (400 to 2100 psi) Spring Range R 33 55.2 to 227.5 bar (800 to 3300 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-3X-BM
X=seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
