HYDRAFORCE
5614902U

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

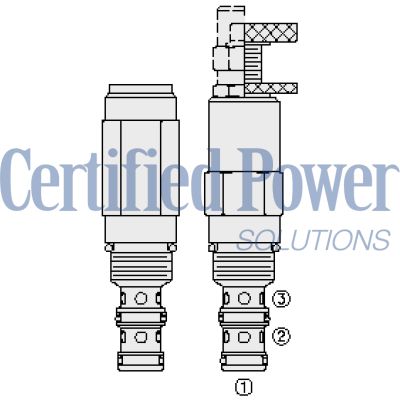

The Hydraforce 5614902U (5614902U) is a screw-in, cartridge-style, direct-acting spool type hydraulic pressure reducing/relieving valve. This model features an internal spring chamber drain and a spool damping chamber, making it highly effective as a pressure regulating device for secondary circuits. In its steady state, the pr50-38xxx allows bidirectional flow between port 2 and port 1 while the spring chamber is constantly drained at port 3. When a predetermined pressure is reached at port 1, the cartridge shifts to block flow at port 2, thereby regulating the pressure at port 1. Additionally, this valve can relieve pressure from port 1 to port 3 at variable values over the set reducing pressure. The design includes features such as adjustments that cannot be backed out of the valve and adjustments that prevent springs from going solid, ensuring reliable operation. Optional spring ranges extend up to 227.5 bar (3300 psi), making it adaptable for various applications requiring precise pressure control. The hardened spool and cage contribute to long-lasting durability, while its industry-common size facilitates easy integration into existing systems. For enhanced protection of port 2, an optional screen with a rating of 60 mesh and 250 microns can be included with option S.
