- Material:5613407
- Model:RV50-26H-0-P-50/ RELIEF VALVE
- Summary:PILOT OPERATED RELIEF VALVE U.S. PATENT # 7,137,406
Quantity in stock: 0

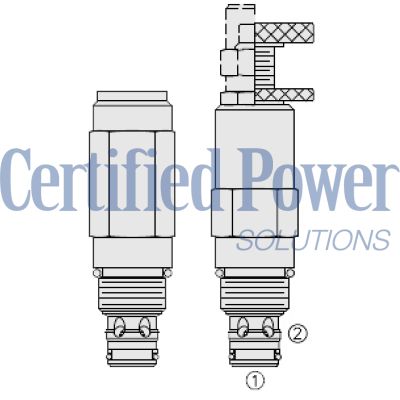

The Hydraforce 5613407 (5613407) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed for use as a pressure limiting device in demanding hydraulic circuits. This valve is specifically engineered to provide fast response and low hysteresis, ensuring efficient operation in high-pressure environments. The RV50-26X model blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, allowing the main spool to shift and open the flow path between ports. Notably, this valve is not suitable for cross-over relief applications. Key features include non-backable adjustments that prevent springs from becoming solid and a hardened spool and cage that enhance durability and longevity. The valve's rapid and smooth response to pressure changes makes it an ideal choice for systems requiring precise control. Additionally, its industry-common size facilitates easy integration into existing hydraulic setups.
Unit weight:
0.25 kg (0.55 lb)
A
0.27 kg (0.60 lb)
B
0.29 kg (0.65 lb)
C l
0.24 kg (0.53 lb)
F h
Internal wetted surface area:
141 cm² (21.8 in²)
A b c l
161 cm² (24.9 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1037.7 bar (15050 psi) Relief pressure defined: Pressure evident at 7.57 lpm (2 gpm) Reseat pressure: Nominal 90% of crack Relief pressure range: 20.7 to 344.7 bar (300 to 5000 psi) From zero to maximum control current Flow Ratings Flow rating: 113.6 lpm (30 gpm) At max pressure Maximum internal leakage: 147 ml/min (9 in³/min) Port 2, at 85% of max crack Other Ratings Cycle life: 500000 cycles at 241.3 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 47.6 to 50.2 N-m (35 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) H style plug torque: 10.8 to 13.6 N-m (8 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV50-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 50 27.6 to 344.7 bar (300 to 5000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-B
X=n,v,p
SK10-2U-O
Urethane
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
