HYDRAFORCE
5613010
$69.50 USD
- HYDRAFORCE
- Material:5613010
- Model:RV50-26L-0-P-50/ RELIEF VALVE
- Summary:PILOT OPERATED RELIEF VALVE U.S. PATENT # 7,137,406
Quantity in stock: 0

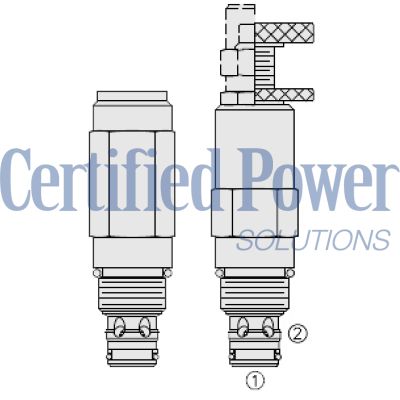

The Hydraforce 5613010 (5613010) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed to serve as a pressure-limiting device in demanding hydraulic circuits. This valve is specifically engineered for applications that require fast response and low hysteresis. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, which then allows the main spool to shift and open port 1 to port 2. Notably, this valve is not suitable for cross-over relief applications. The RV50-26X features adjustments that cannot be backed out of the valve, preventing springs from going solid. Additionally, it incorporates a hardened spool and cage to ensure long life and offers rapid, smooth response to pressure changes. Its industry-common size makes it a versatile choice for various hydraulic systems.
Unit weight:
0.25 kg (0.55 lb)
A
0.27 kg (0.60 lb)
B
0.29 kg (0.65 lb)
C l
0.24 kg (0.53 lb)
F h
Internal wetted surface area:
141 cm² (21.8 in²)
A b c l
161 cm² (24.9 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1037.7 bar (15050 psi) Relief pressure defined: Pressure evident at 7.57 lpm (2 gpm) Reseat pressure: Nominal 90% of crack Relief pressure range: 20.7 to 344.7 bar (300 to 5000 psi) From zero to maximum control current Flow Ratings Flow rating: 113.6 lpm (30 gpm) At max pressure Maximum internal leakage: 147 ml/min (9 in³/min) Port 2, at 85% of max crack Other Ratings Cycle life: 500000 cycles at 241.3 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 47.6 to 50.2 N-m (35 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) H style plug torque: 10.8 to 13.6 N-m (8 to 10 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV50-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 50 27.6 to 344.7 bar (300 to 5000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-B
X=n,v,p
SK10-2U-O
Urethane
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
