- Model:RV10-22H-0-V-13/ RELIEF VALVE
- Summary:RELIEF VALVE CARTRIDGE DIRECT ACTING POPPET
Quantity in stock: 0

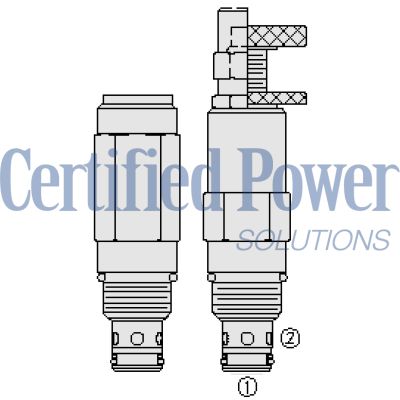

The Hydraforce 5611401V (5611401V) is a screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits. This model is particularly suited for applications requiring low hysteresis and minimal internal leakage. The RV10-22X model effectively blocks flow from port 2 to port 1 until the pressure at port 2 is sufficient to dislodge the poppet from its seat, ensuring a smooth transition in response to load changes within typical hydraulic systems. It features adjustments that cannot be backed out of the valve and offers adjustment options A, B, and C with positive stops to prevent springs from going solid. The valve's construction includes a hardened poppet and cage for enhanced durability and longevity. Additionally, it provides optional spring ranges up to 241 bar (3500 psi) and is capable of rapid response to pressure surges. The design adheres to industry-common size standards, making it versatile for integration into various hydraulic systems.
Unit weight:
0.231 kg (0.51 lb)
RV10-22A
0.254 kg (0.56 lb)
RV10-22B
0.276 kg (0.61 lb)
RV10-22C, RV10-22L
0.222 kg (0.49 lb)
RV10-22F, RV10-22H
Internal wetted surface area:
114 cm² (17.7 in²)
A, B, C and L
126 cm² (19.5 in²)
F and H
| Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Relief pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: GRV10-22X 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

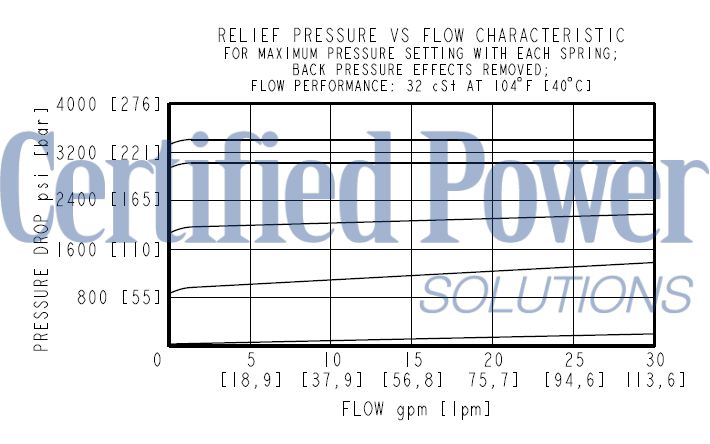

| Performance |  |
| Installation Specifications | Cavity:

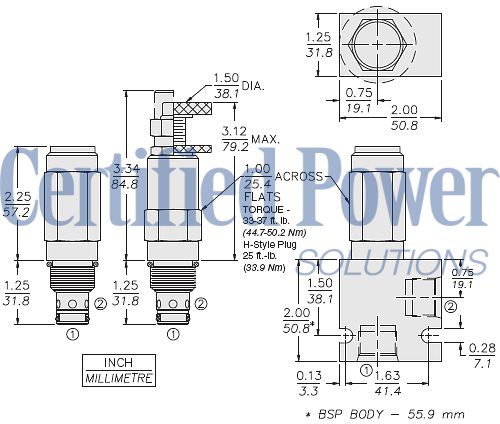

VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) 66.7 N-m (50 ft-lb) Maximum allowable Adjuster cap torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H-style plug Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV10-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 06 6.9 to 41.5 bar (100 to 600 psi) Spring Range R 13 10.3 to 89.6 bar (150 to 1300 psi) Spring Range R 25 17.2 to 172.4 bar (250 to 2500 psi) Spring Range R 35 20.7 to 241.3 bar (300 to 3500 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK10-2X-T
X = N, V, P
SK10-2X-M
For bidirectional operation
SK10-2X-O
X = U
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
