- Model:PS08-30A-6T-N-06/ SEQUENCE VALVE
- Summary:SEQUENCE VALVE
Quantity in stock: 0

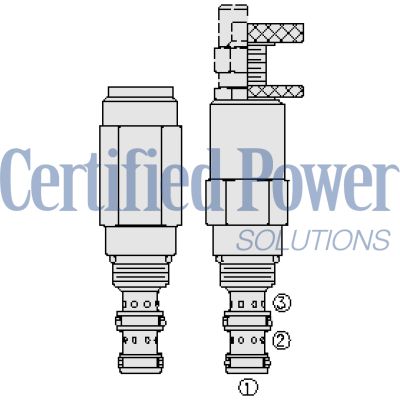

The Hydraforce PS08-30A-6T-N-06 (5607041) is a direct-acting, spool-type hydraulic sequence valve designed to manage the flow of oil to a secondary circuit once a predetermined pressure is reached in the primary circuit. In its steady state, this valve blocks flow at port 1 while allowing flow from port 2 to port 3. Upon reaching the set pressure at port 1, the cartridge shifts to open flow from port 1 to port 2. It features adjustments that prevent springs from going solid and offers optional spring ranges up to 165.5 bar (2400 psi). The valve is constructed with a hardened spool and cage for durability and fits into compact, industry-standard sizes. It has a pressure rating of 241.3 bar (3500 psi) at all ports, with proof and burst pressures of 482.6 bar (7000 psi) and 896.3 bar (13000 psi), respectively. The PS08-30A can handle a flow rate of up to 22.7 lpm (6 gpm) with maximum internal leakage capped at 82 ml/min (5 in\u00b3/min). It operates efficiently across various temperatures depending on seal material: -40 to 100 \u00b0C with buna N seals, -26 to 204 \u00b0C with viton seals, and -54 to 107 \u00b0C with polyurethane seals. The unit weighs approximately 0.24 kg (0.53 lb) and fits into an VC08-3 cavity requiring installation torque between 25.8 to 28.6 N-m (19 to 21 ft-lb). Compatible fluids include mineral-based or synthetic options with lubricating properties within a viscosity range of 7.4 to 420 cSt, maintaining an operating contamination level of ISO code 18/16/13 or cleaner. Seal kits for maintenance are available under part number SK08-3X-BB, adaptable based on seal options chosen during installation or repair processes.
Unit weight:
0.24 kg (0.53 lb)
PS08-30A
0.23 kg (0.51 lb)
PS08-30F PS08-30H
0.26 kg (0.58 lb)
PS08-30B
0.29 kg (0.63 lb)
PS08-30C
Internal wetted surface area:
128 cm² (19.9 in²)
PS08-30A PS08-30B PS08-30C
143 cm² (22.1 in²)
PS08-30F PS08-30H

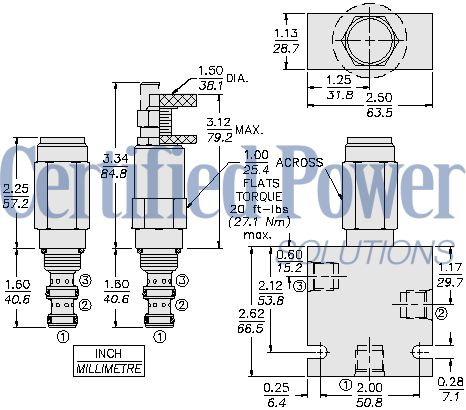

Ratings | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) At all ports Proof pressure: 482.6 bar (7000 psi) At all ports Burst pressure: 896.3 bar (13000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 82 ml/min (5 in³/min) Max at nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

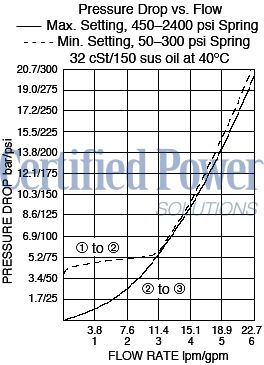

Performance | |
Installation Specifications | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.6 N-m (19 to 21 ft-lb) Orientation restriction: None |
Order Code | POSITION CODE DESCRIPTION PS08-30F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 03 3.4 to 20.7 bar (50 to 300 psi) Spring Range R 06 8.3 to 41.4 bar (120 to 600 psi) Spring Range R 13 13.8 to 89.6 bar (200 to 1300 psi) Spring Range R 24 30 to 165.5 bar (450 to 2400 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK08-3X-BB
X=seal option
Seal kit installation instructions
Housings:
Available
08-3w valve bodies
