HYDRAFORCE
5601106
$46.25 USD
- HYDRAFORCE
- Material:5601106
- Model:RV08-22B-0-N-04/ RELIEF VALVE
- Summary:RELIEF VALVE CARTRIDGE DIRECT ACTING DIFFERENTIAL AREA POPPET TYPE
Quantity in stock: 0

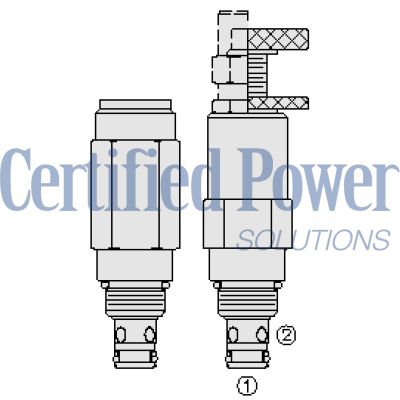

The Hydraforce 5601106 (5601106) is a screw-in, cartridge-style, direct-acting hydraulic relief valve designed for demanding hydraulic circuits that require low hysteresis and minimal internal leakage. This differential area, poppet-type valve effectively limits pressure by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to unseat the poppet. The RV08-22X model offers various pressure adjustment options, including non-adjustable factory presets with options A, B, and C featuring positive stops to prevent spring compression beyond their limits. For enhanced durability and performance, the valve includes a hardened poppet and cage. It also provides optional bi-directional pressure capabilities with an appropriate seal option and supports spring ranges up to 248 bar (3600 psi). This compact valve is designed for smooth response to pressure surges and fits industry-standard cavities, making it a reliable choice for applications requiring precise pressure control in compact spaces.
Unit weight:
0.17 kg (0.37 lb)
A
0.19 kg (0.42 lb)
B
0.22 kg (0.47 lb)
C l
0.16 kg (0.35 lb)
F h
Internal wetted surface area:
112 cm² (17.4 in²)
A b c l
122 cm² (19.2 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 248.2 bar (3600 psi) Proof pressure: 496.4 bar (7000 psi) Burst pressure: 1037.7 bar (16168 psi) Relief pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Reseat pressure: Nominal 90% of crack Flow Ratings Flow rating: 30.3 lpm (8 gpm) At max pressure Maximum internal leakage: 0.25 ml/min (5 drops/min) Max to 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 40.7 N-m (30 ft-lb) Plug torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) Orientation restriction: None |

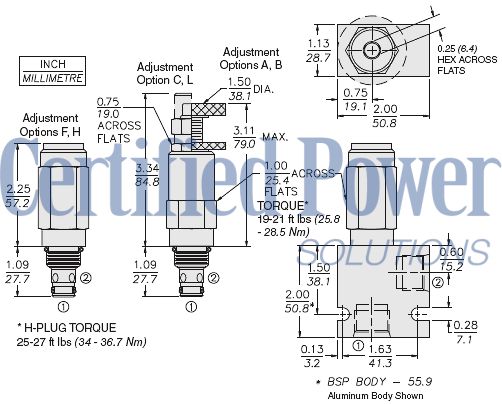

| Order Code | POSITION CODE DESCRIPTION RV08-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 04 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 07 6.9 to 48.3 bar (100 to 700 psi) Spring Range R 13 10.3 to 89.6 bar (150 to 1300 psi) Spring Range R 26 17.2 to 248.2 bar (250 to 3600 psi) Spring Range R 35 17.2 to 248.2 bar (250 to 3600 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK08-2X-T
X=seal options
SK08-2X-M
X=seal options
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
